AC Voltage Applied to an Inductor:

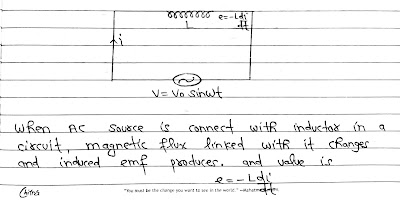

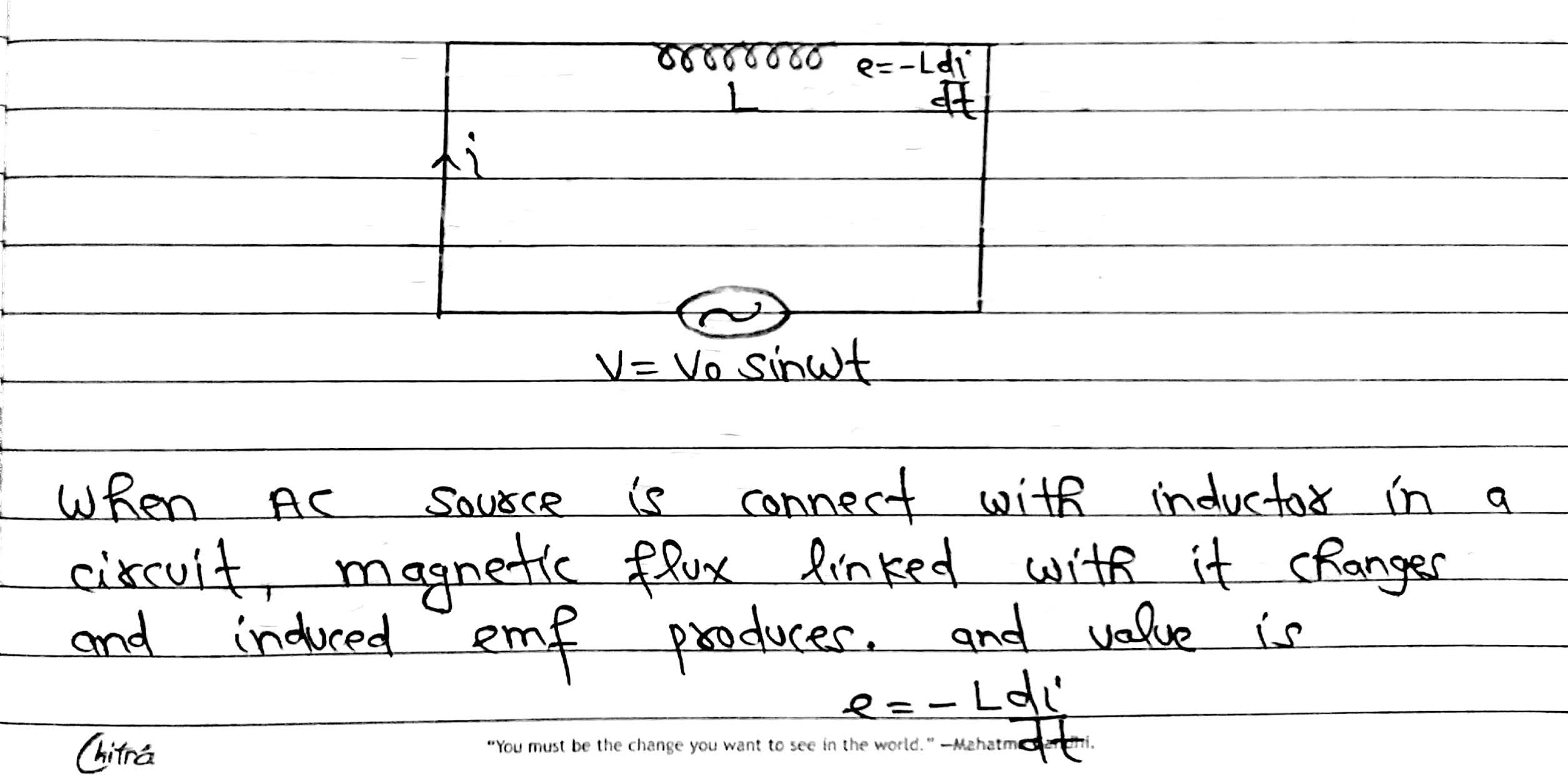

Let an inductor with self inductance(L) is connected to an AC source with instantaneous EMF (V) which is given by

              V= V₀Sinωt

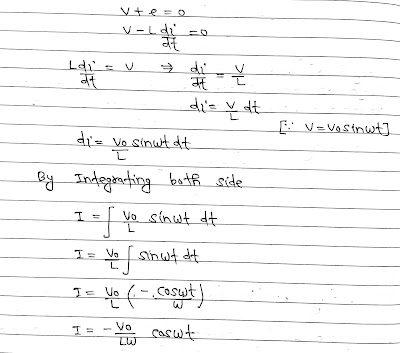

Applying Kirchhoff’s law, Net potential across the circuit will be zero

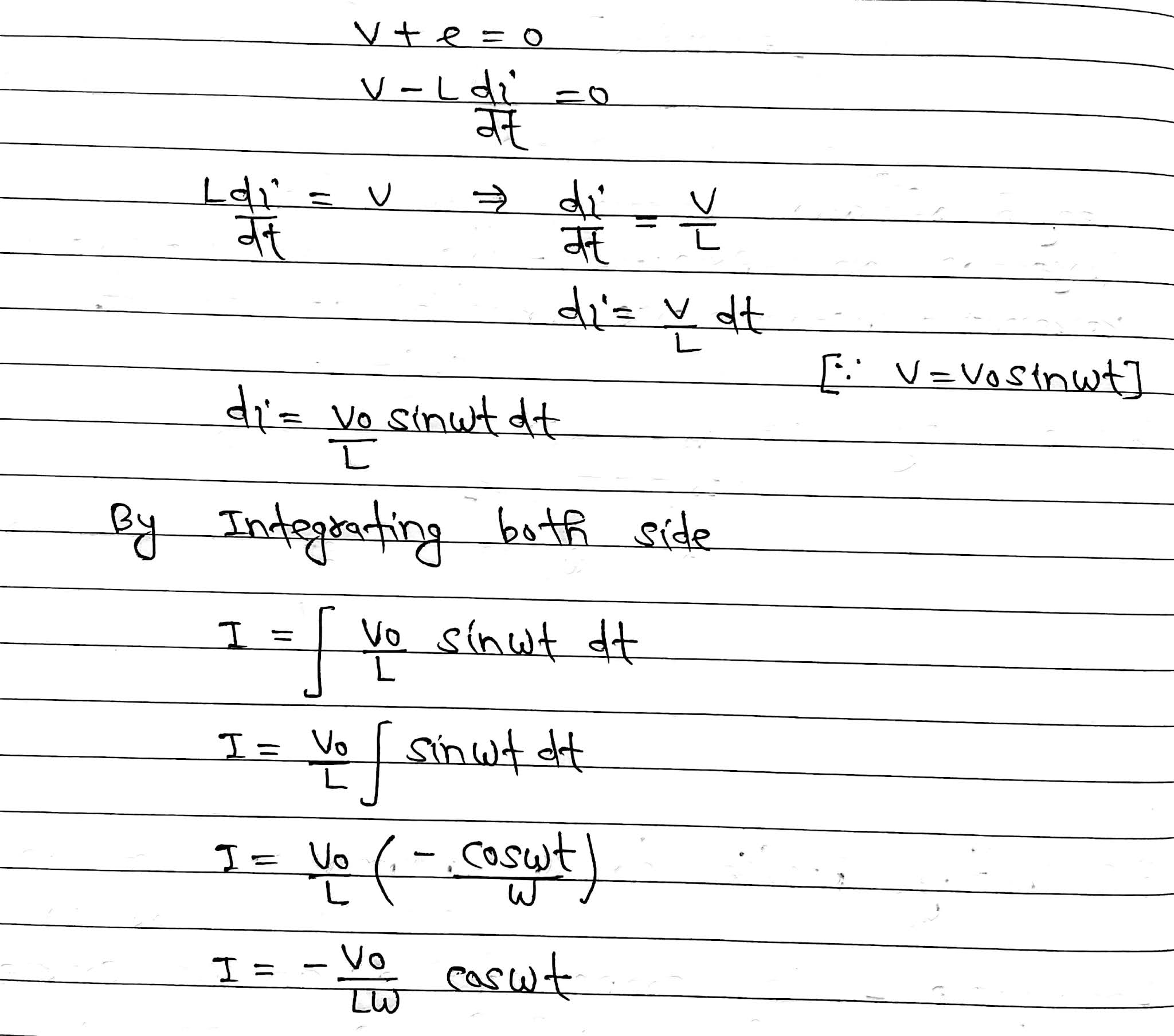

CamScanner%2B04 24 2021%2B16.47.40

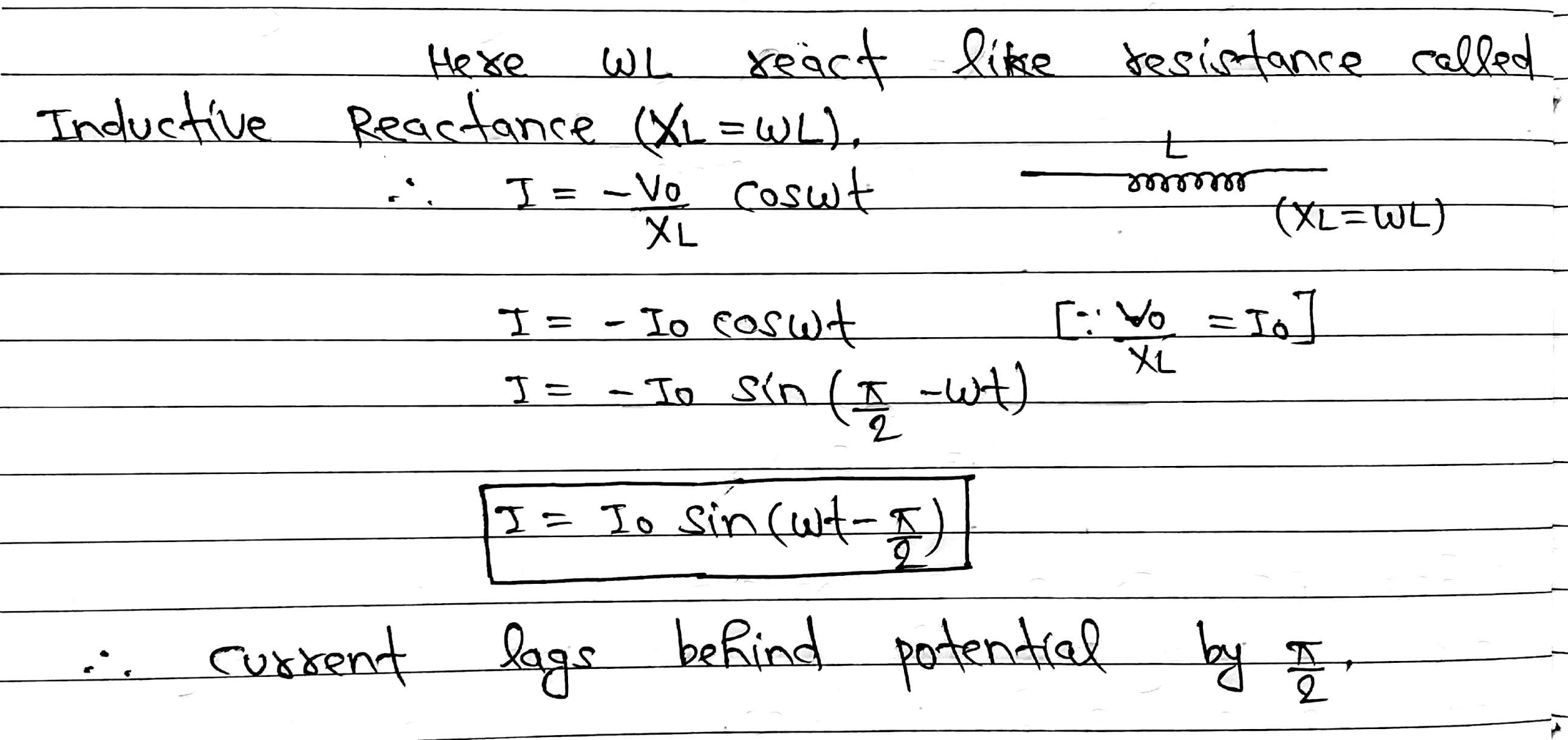

Phase difference: Phase angle of V- Phase angle of I

ωt-(ωt-π/2) = π/2

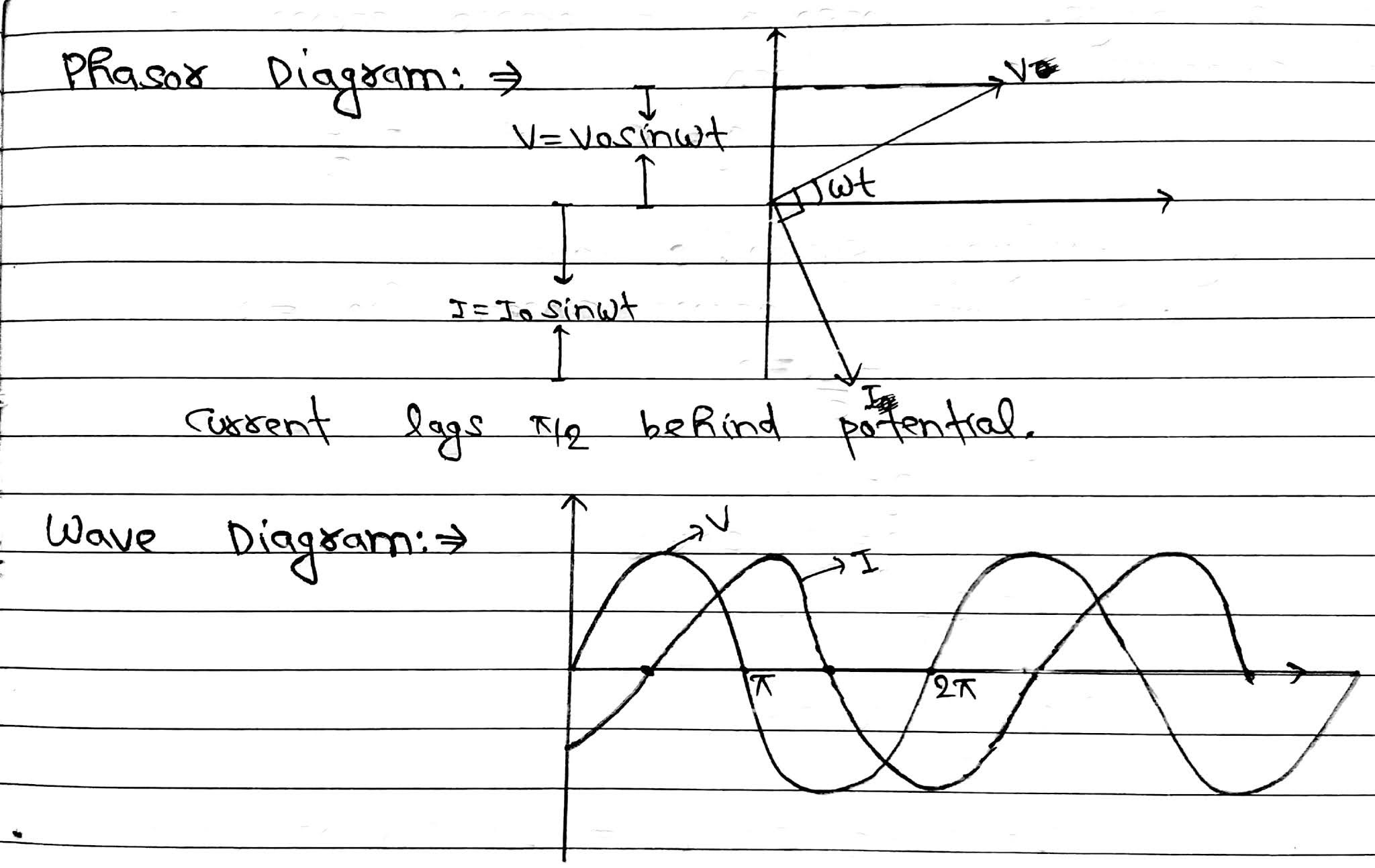

CamScanner%2B04 24 2021%2B19.45.32

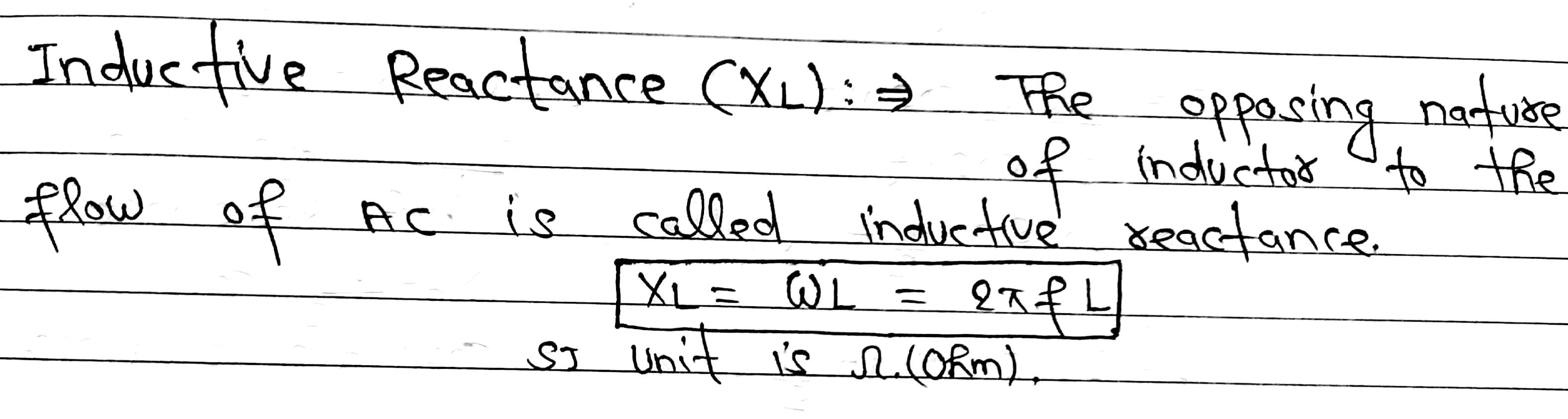

CamScanner%2B04 24 2021%2B19.48.09
