Charging by Induction:-

The process of charging a neutral body by bringing a charged body nearby it without making contact between the two bodies is known as charging by induction.



Using the process of charging by induction, conductor may be charged permanently.

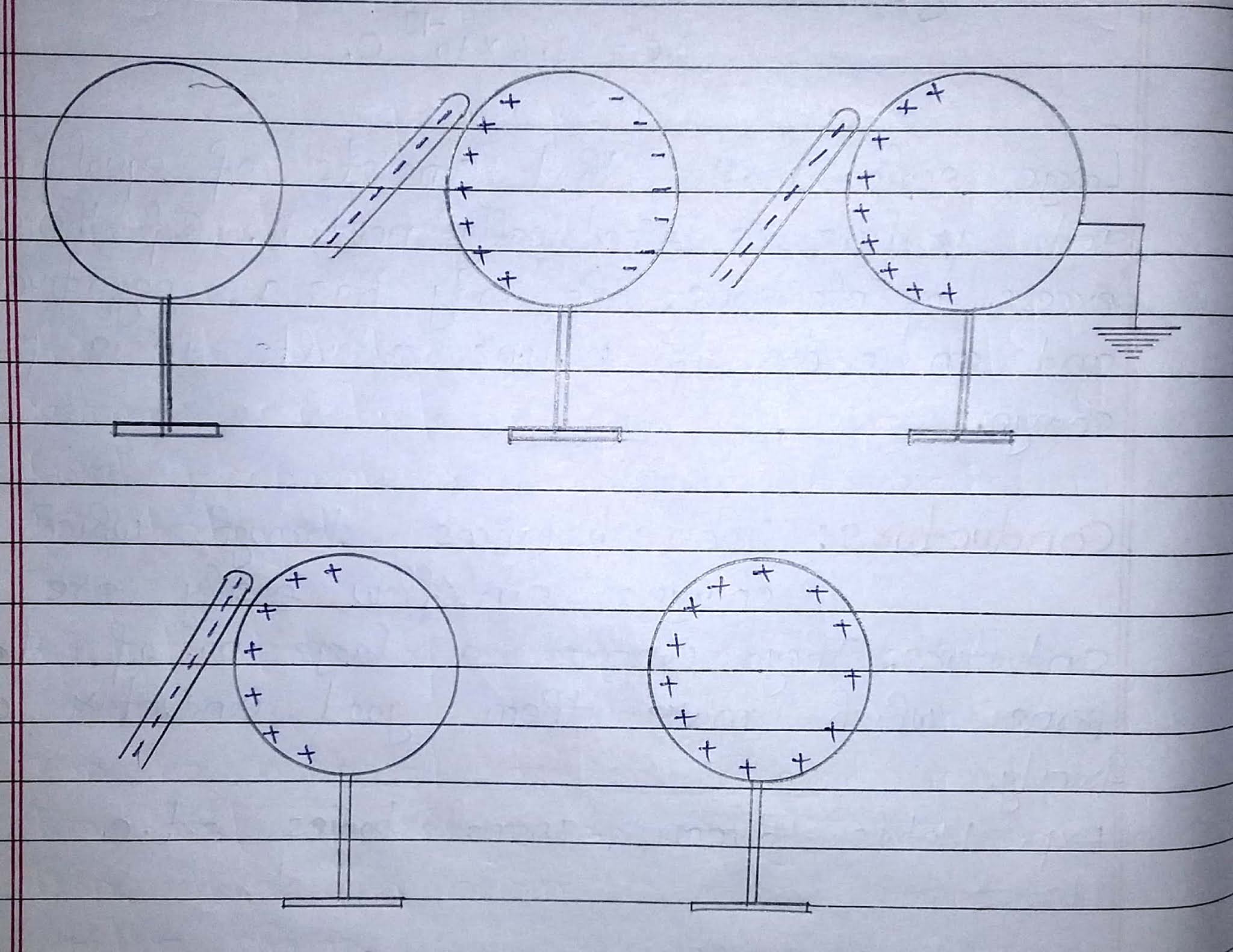

Process:-

1. For charging an uncharged conducting sphere positively by induction, A negatively charged rod is brought close to it.

2. The near end of the sphere becomes positively charged while its far end becomes negatively charged.

3. Now, the sphere is connected to the earth, keeping the negatively charged rod in its position.

4. The electrons will flow to the ground, while positive charges will remain held at near end because of attractive force of the negative charges on road.

5. Now if we disconnect the sphere from the ground, the positive charges still continuous to be held at near end.

6.When the negatively charged rod is removed, the positive charge will spread uniformly over the sphere.

So, Now sphere is positively charged.
