Magnetic Field Due to a Current Carrying Conductor

Chapter-4|Moving Charges and Magnetism| NCERT 12th Physics:

Magnetic Field Due to a Current Carrying Conductor:



Magnetic Field On The Axis of a Circular Current Carrying Loop:

Let we consider a circular loop of radius R with Centre C.

89ND2SgTdCSTB8T3J0CLQF3D

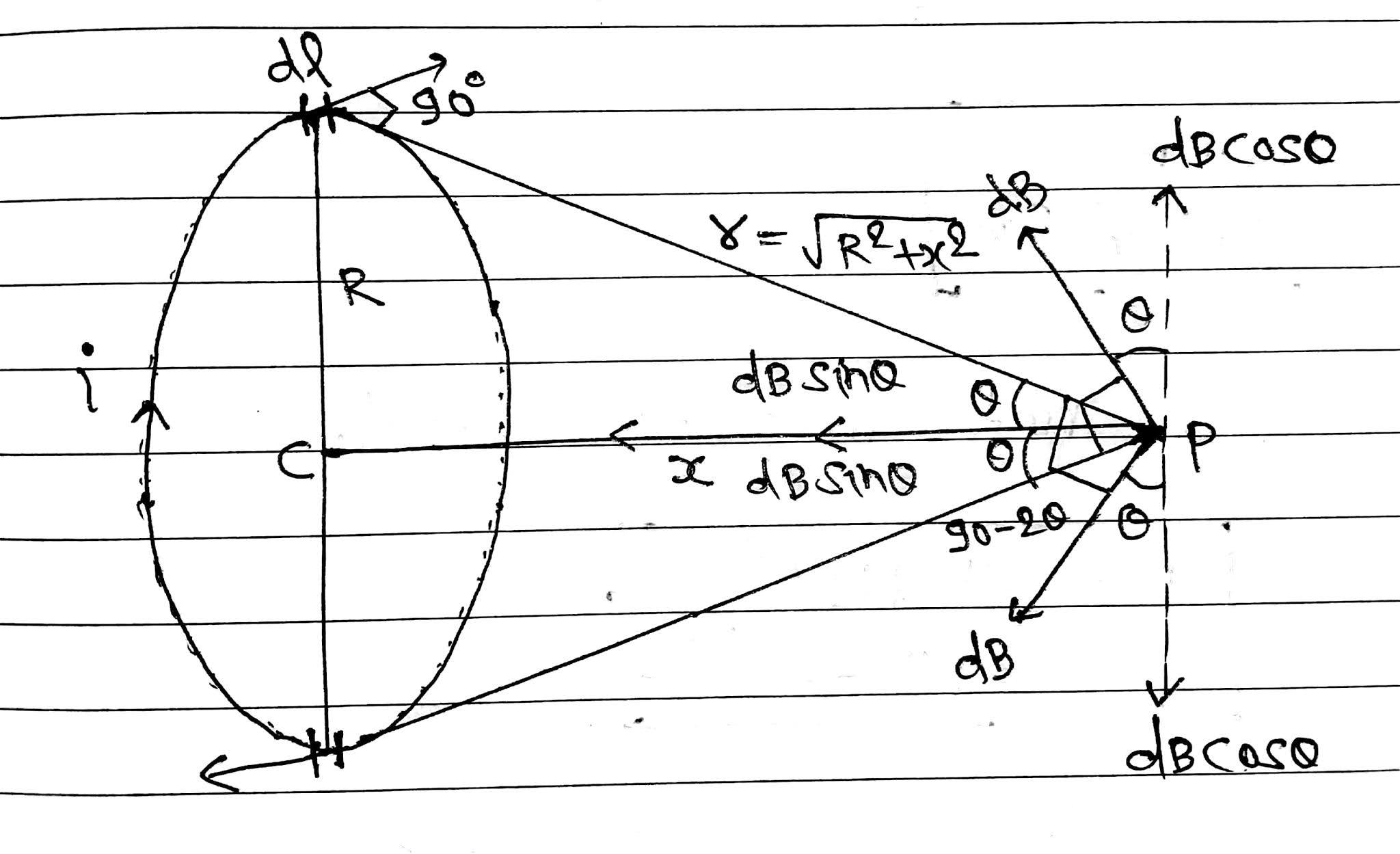

Let we consider current element Idl on the top and the bottom.

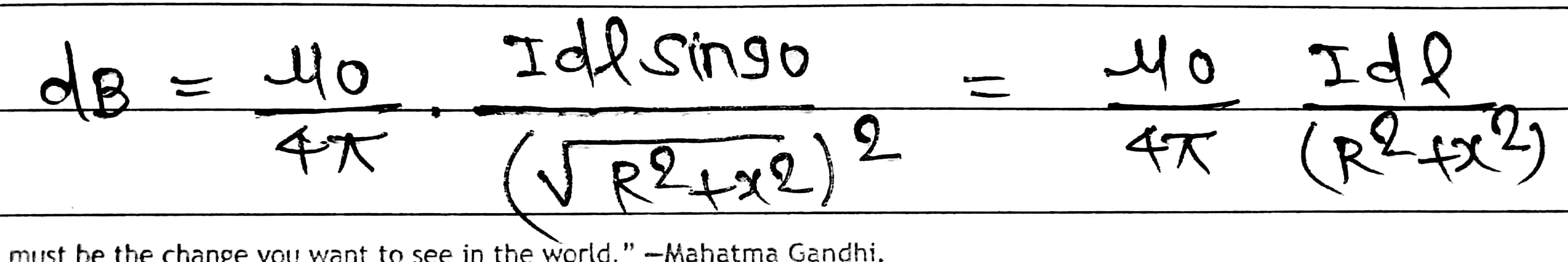

Now, magnetic field at point P due to current element Idl, According to Biot-Savart’s law

6VQAaMDL5f08Y2dLAWHRX230

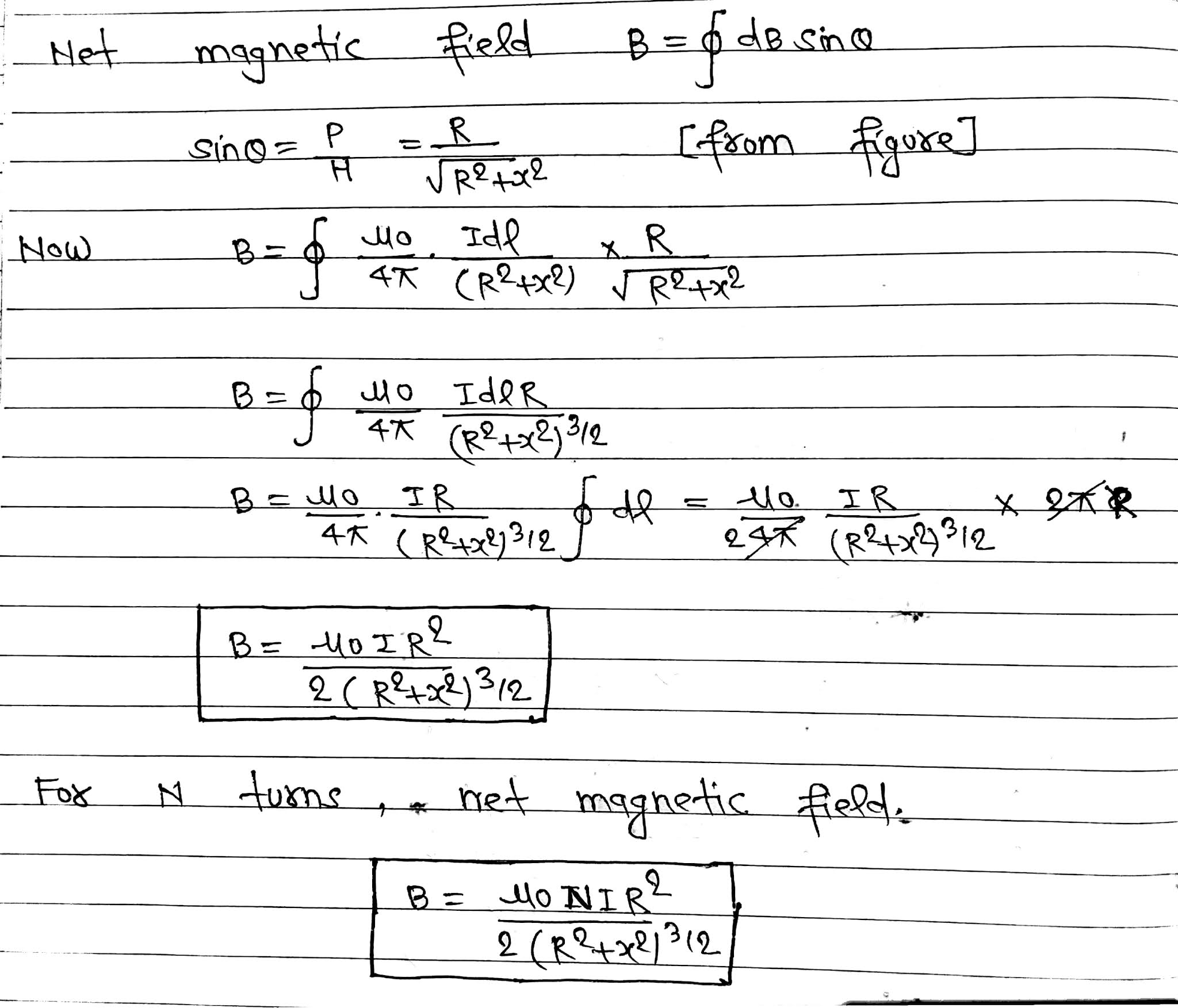

Now, Resolving dB due to current element Idl at top and bottom balance each other. The net magnetic field is obtained only by the Sine component.

gyT8S0E7P82AQP1fYXJtBrgP


Note:  When the direction of current in the coil is anti-clockwise, then direction of magnetic field is away from the loop.


Magnetic Field at The Centre of a Current Carrying Circular Loop:

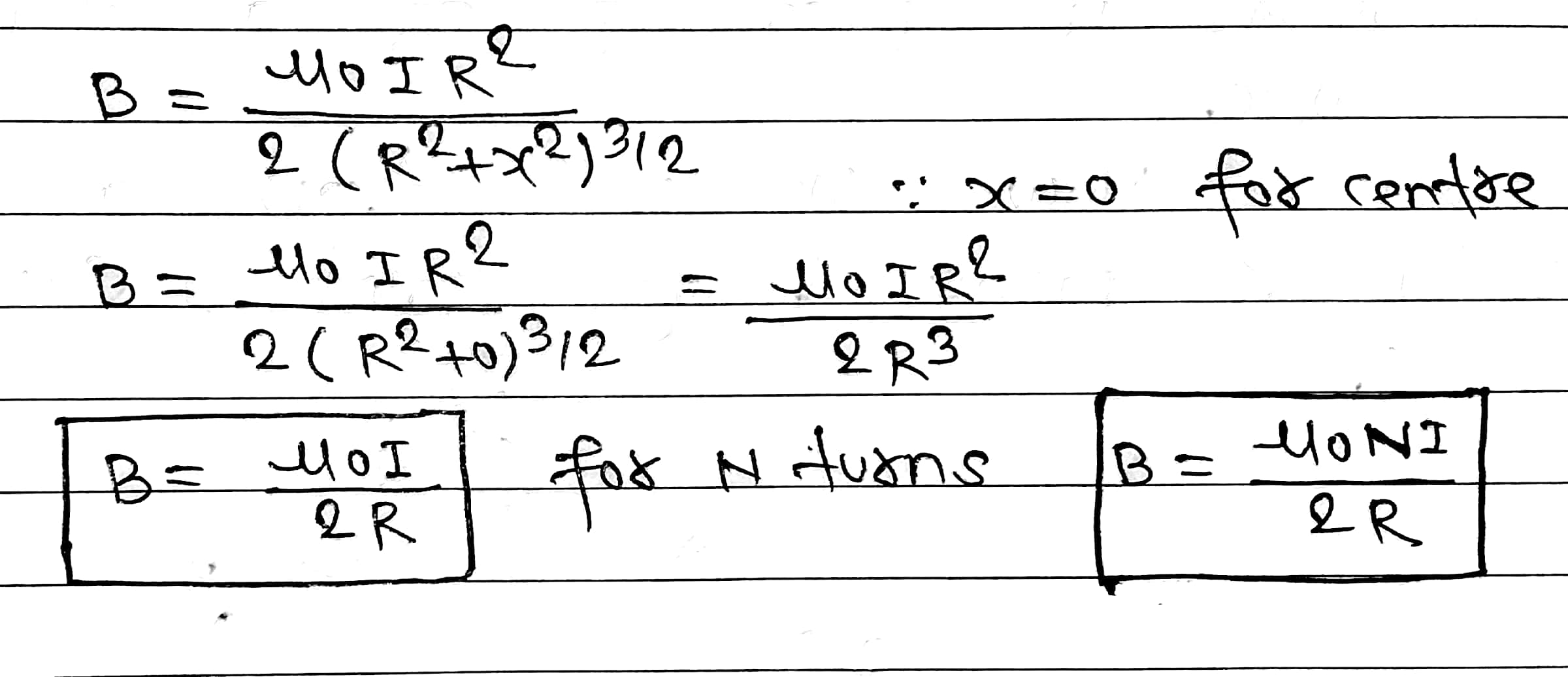

Since, We know that magnetic field on the axis of a circular current carrying loop

5a8W3KQFfBa9aAAR8T0UWAA4
