Parallel Plate Capacitor:

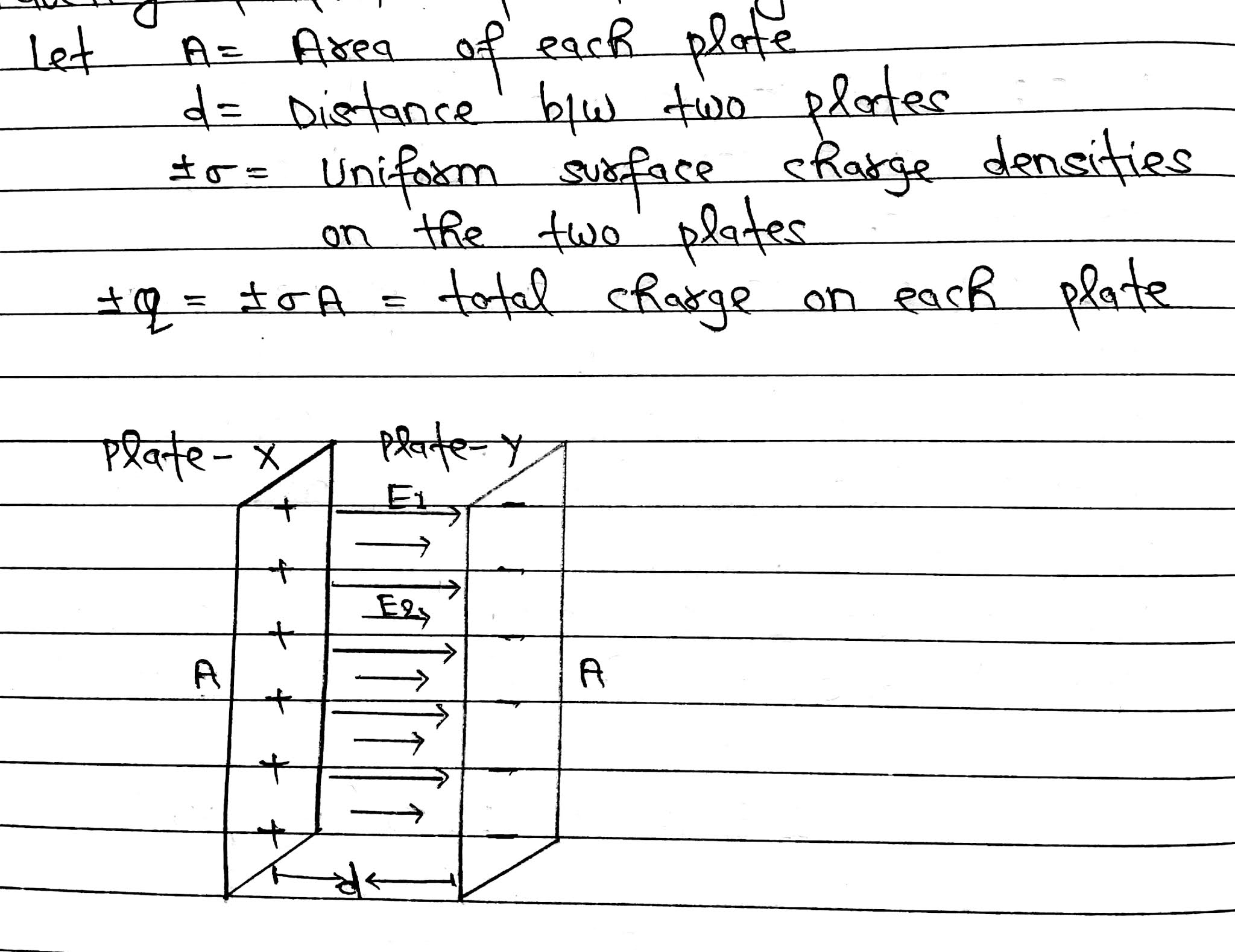

The simplest and the most widely used capacitor is the parallel plate capacitor. It consists of two large plane parallel conducting plates, separated by a small distance.

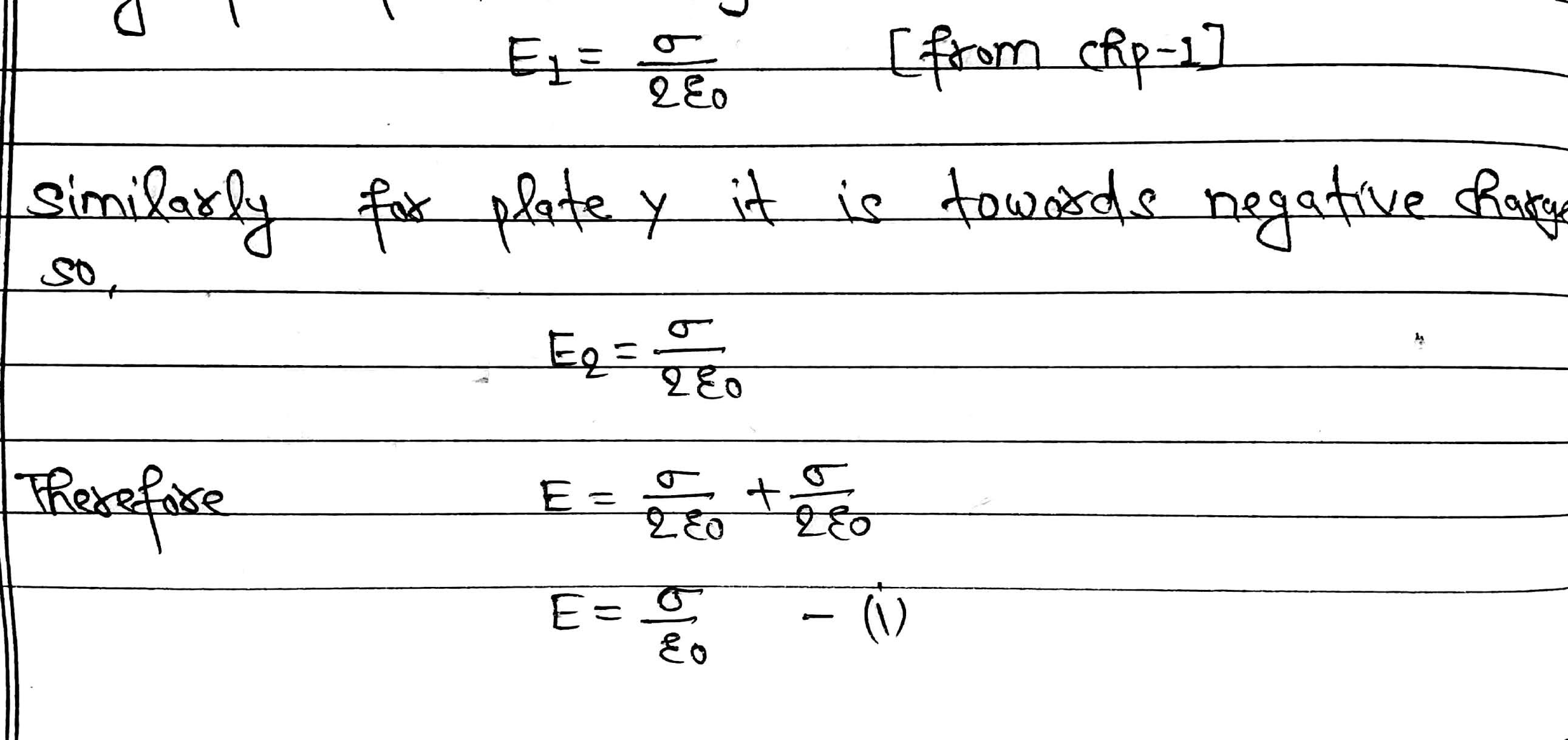

Electric field due to infinite plane sheet X away from positive charge

VybEhf1XPyUXeb0rVdMyBBh9

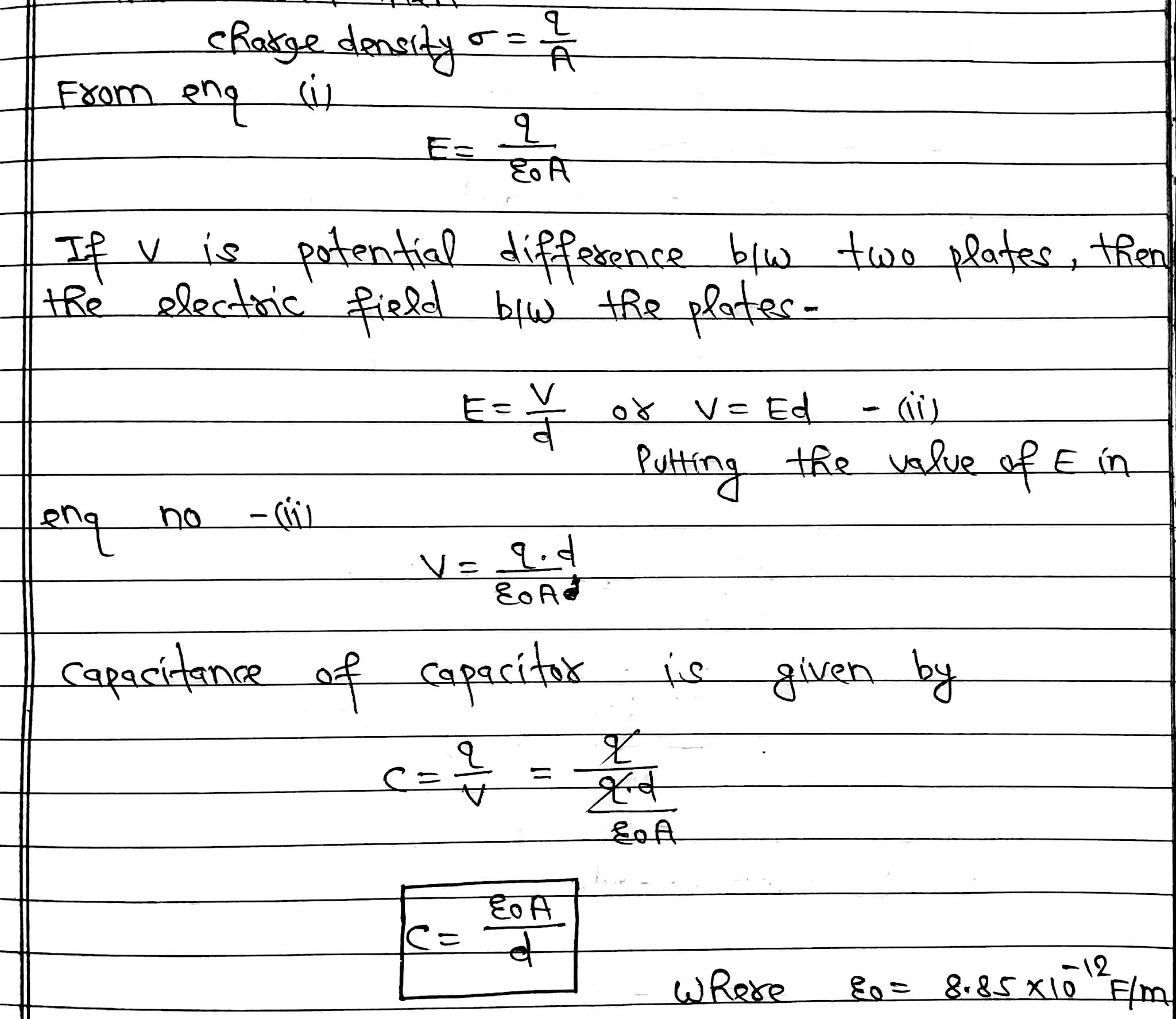

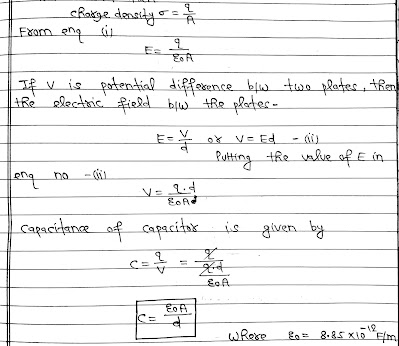

If q is the charge on each plate and A be the area, then


From the formula it is clear that for high capacitance.

(I) The area of conducting plates should be large.

(II) Distance between two plate should be very small.
