Torque on a Magnetic Dipole (bar magnet) in a Uniform Magnetic Field

Torque on a Magnetic Dipole (bar magnet) in a Uniform Magnetic Field:

Let a bar magnet is placed in a uniform magnetic field B. The length of the bar magnet is 2l and strength of each pole m.

The magnet is held at angle theta with the direction of B.



WHAWaF00X4r1CWW1NRVEdBS6

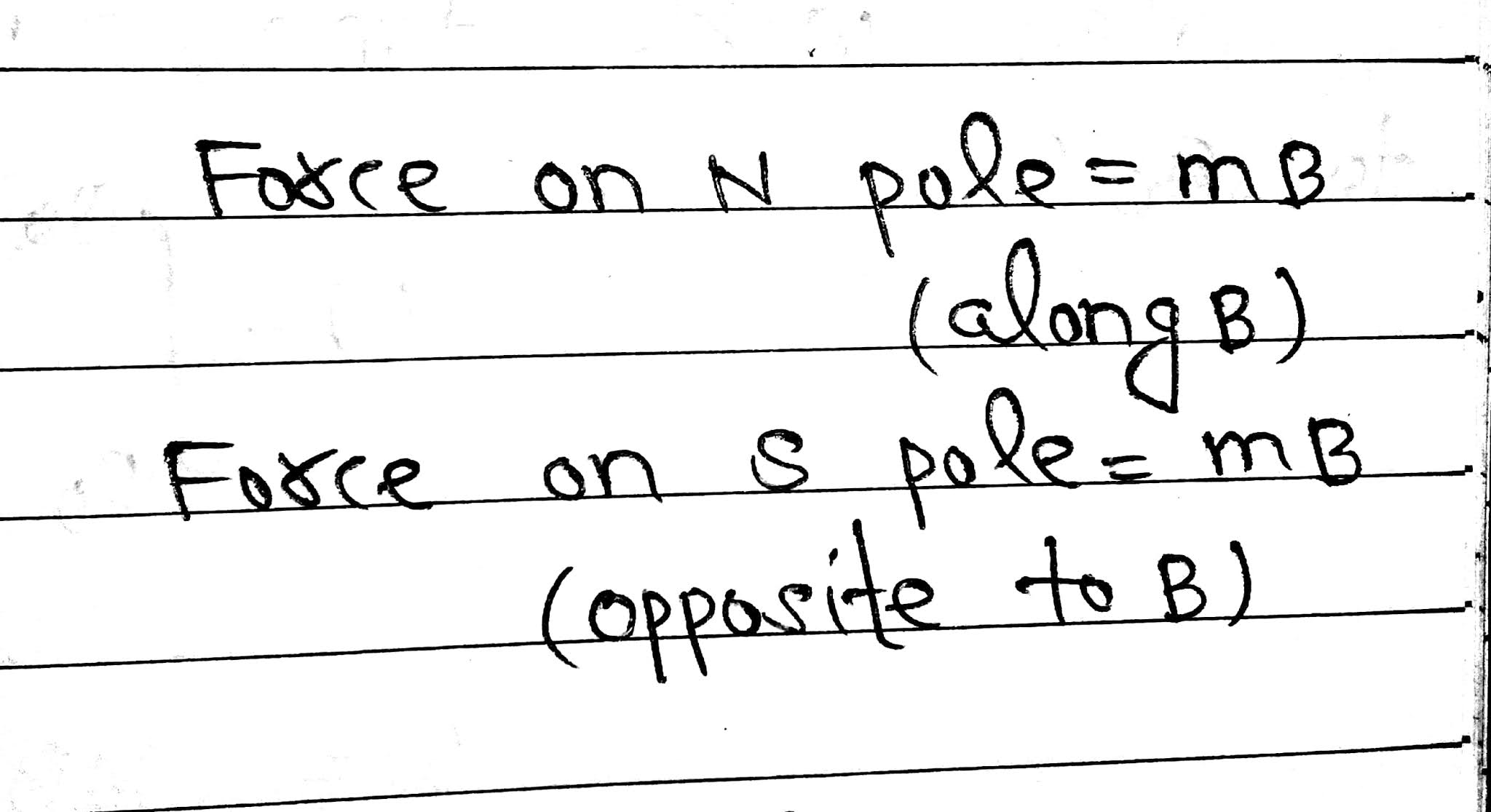

These equal and opposite forces from a couple which tends to rotate the magnet clockwise.

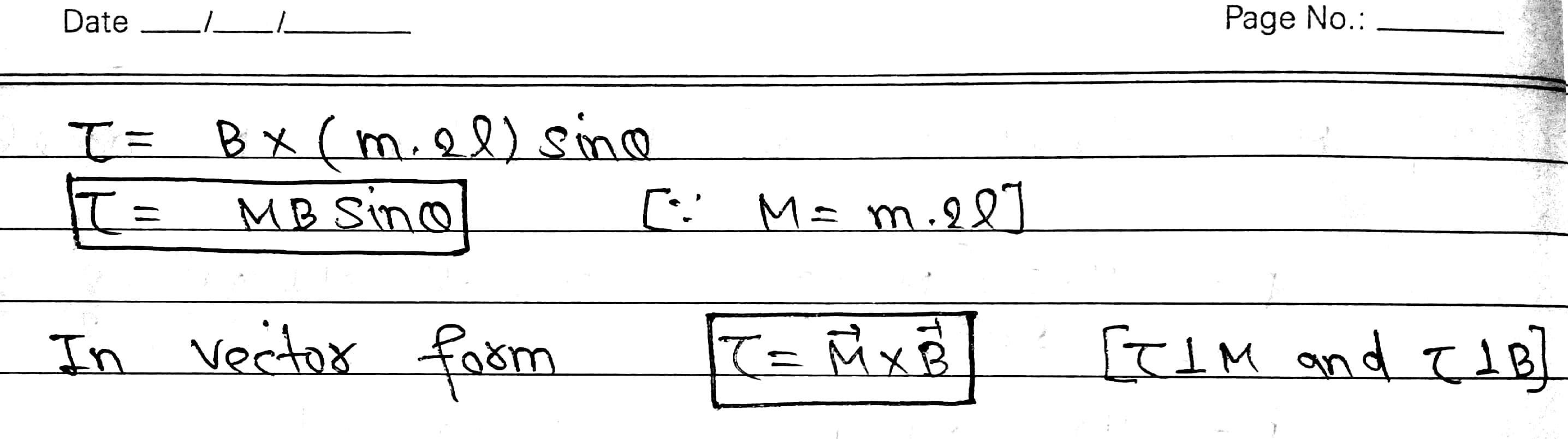

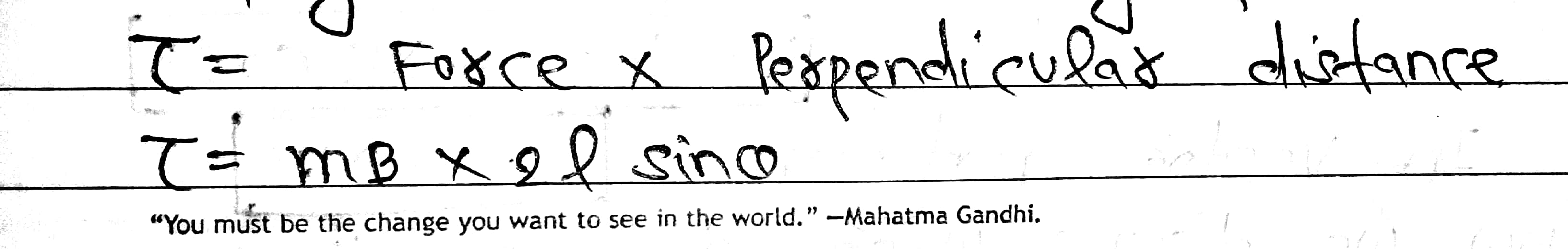

 Torque acting on the bar magnet-

7HfRYJ4QCfDKRPWeLerRUXUN
K6e8yMty6FTVL2Hb1gDPEXQL
