Chapter-7|Alternating Current |NCERT 12th Physics:
AC Voltage Applied to a Series LCR Circuit:

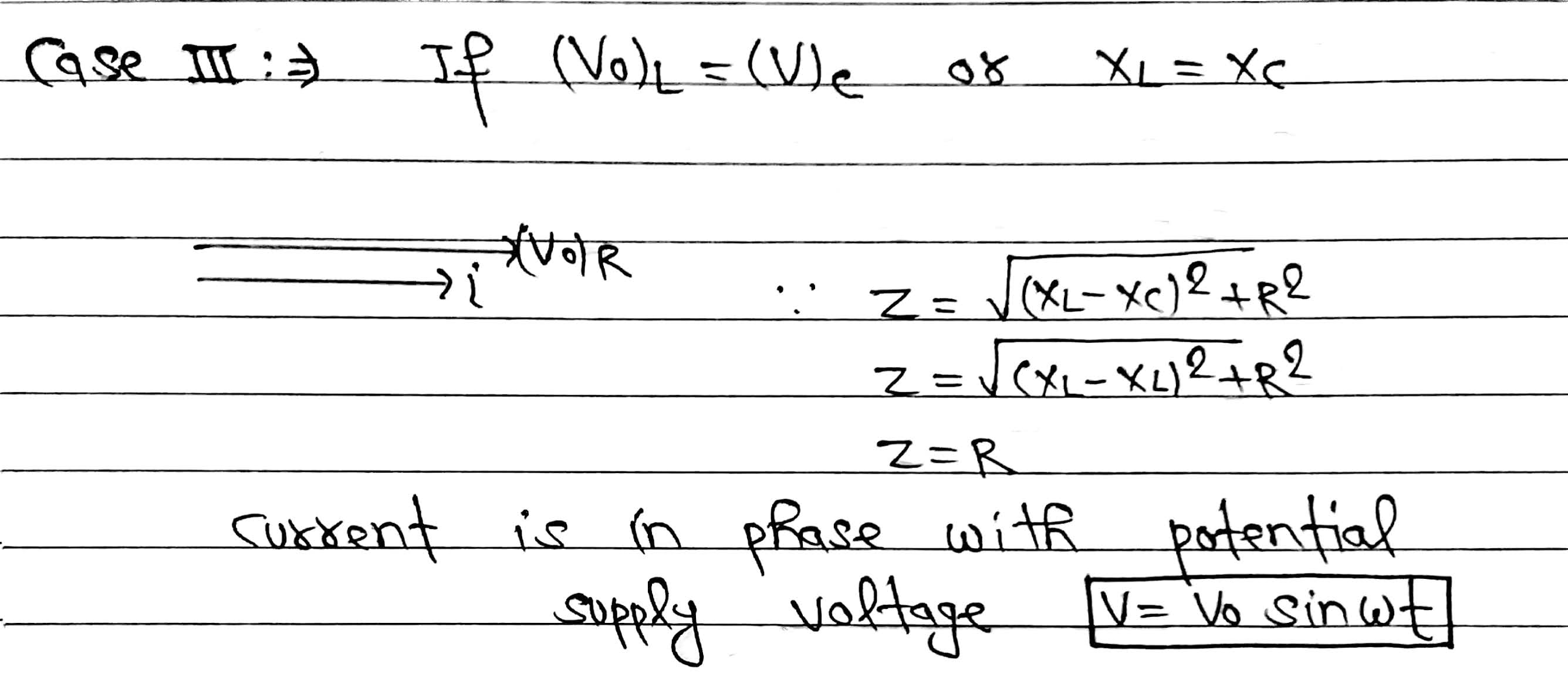

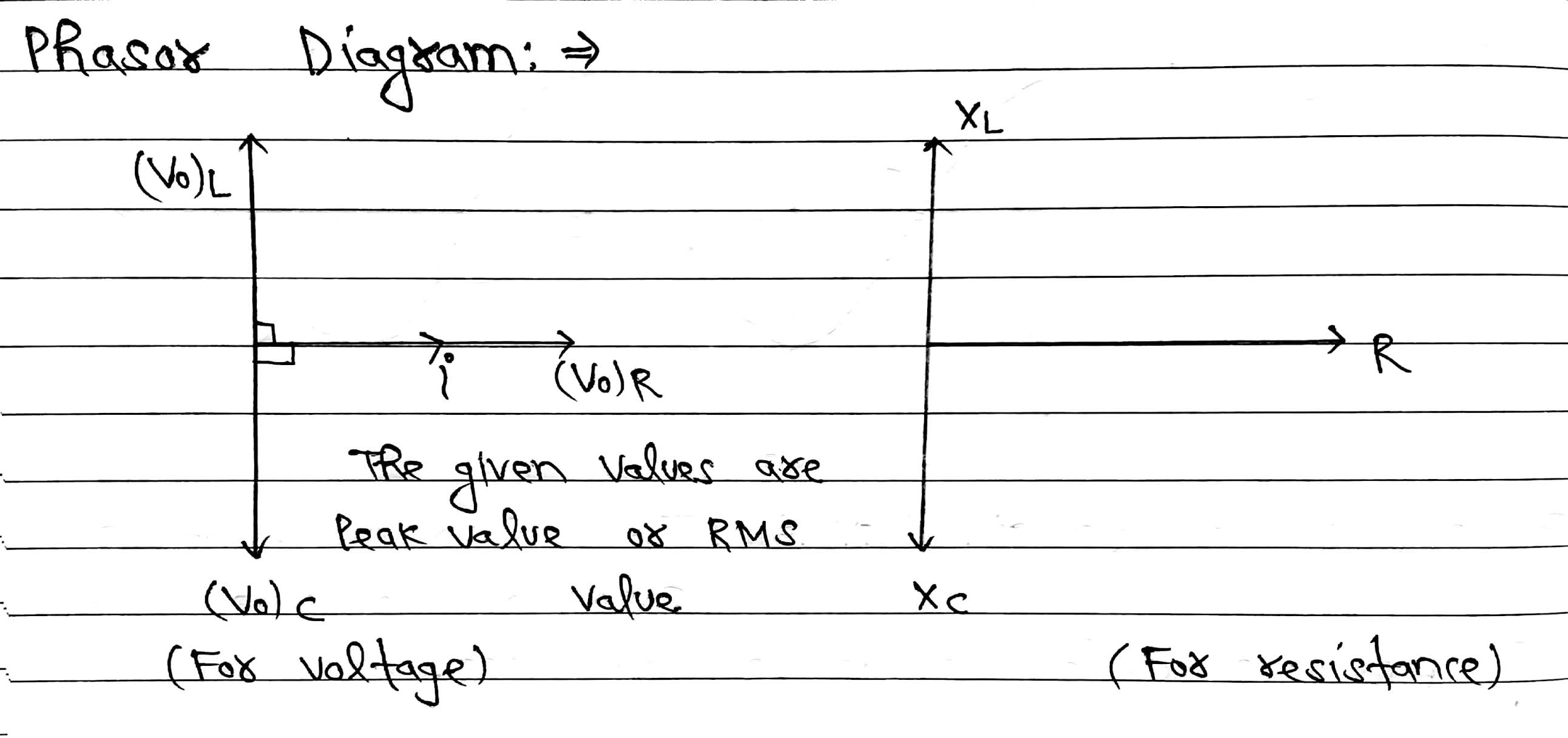

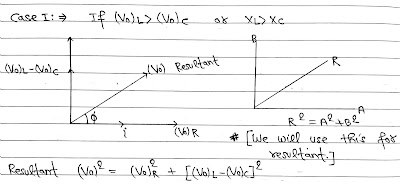

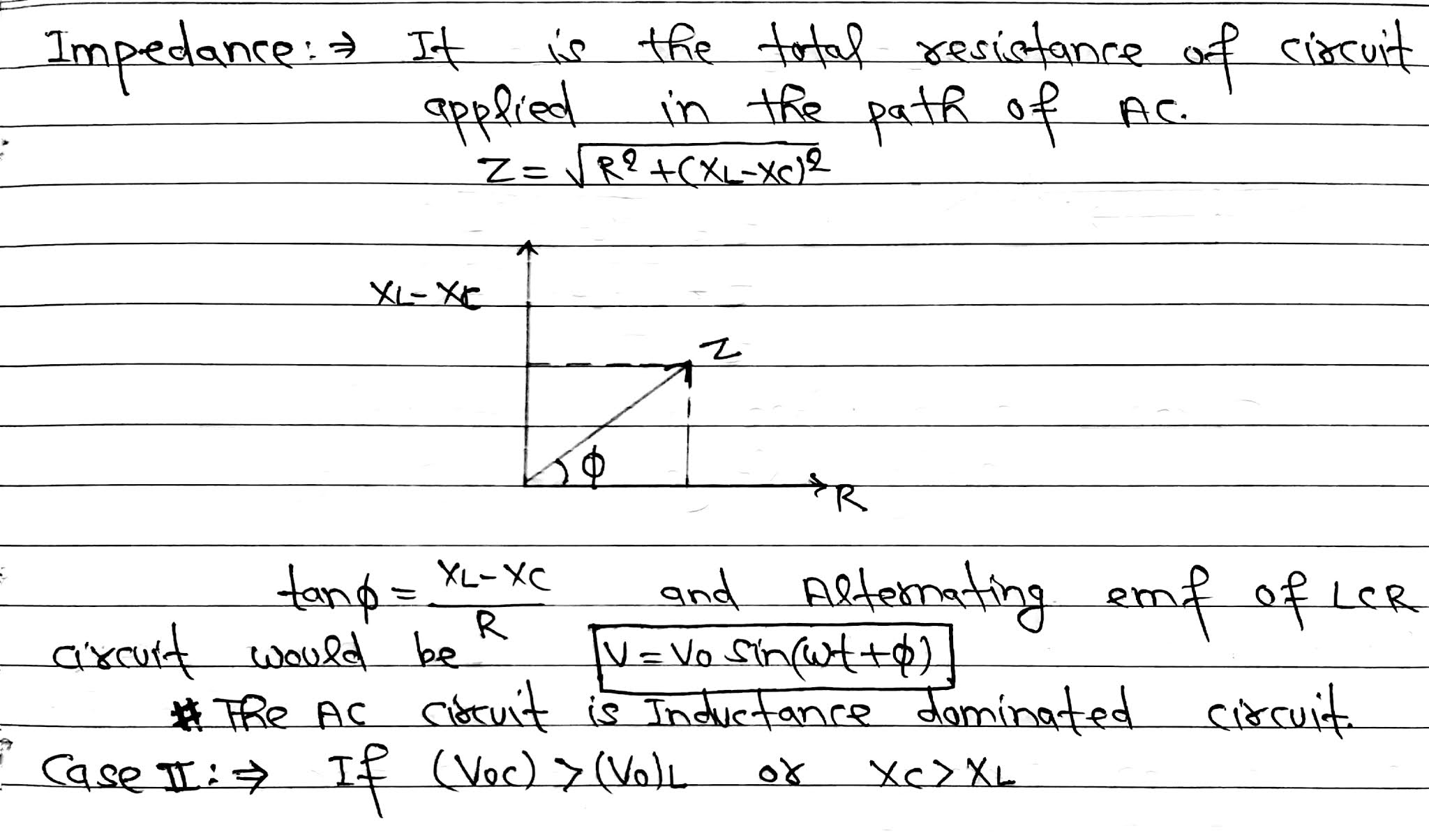

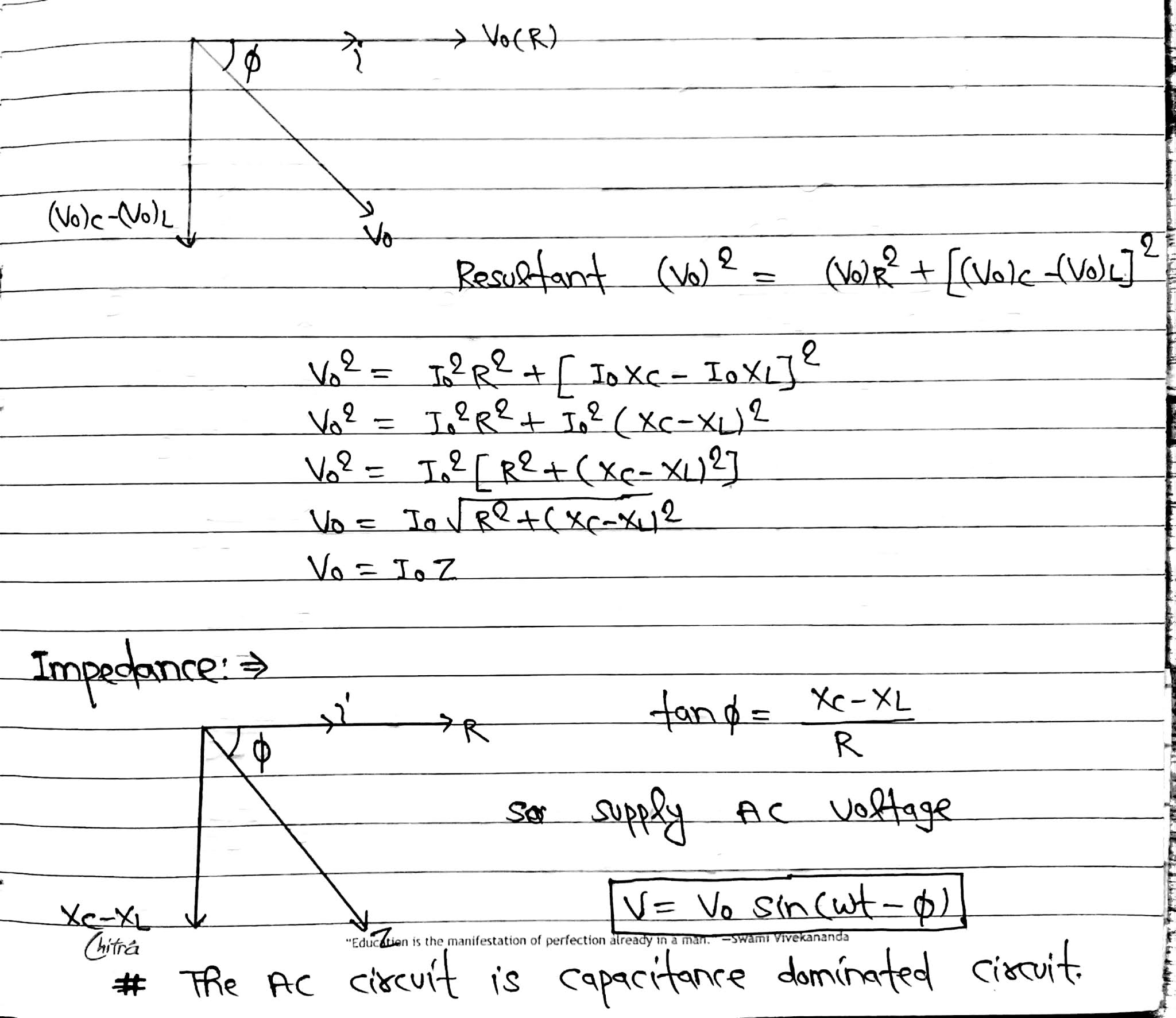

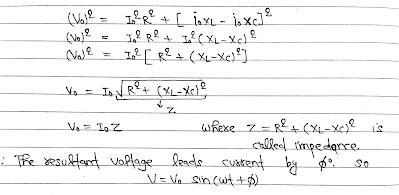

Let an inductor(L), a capacitor (C) and resistance (R) are connected in series to an AC source.
AC Circuit || AC Voltage Applied to a Series LCR Circuit
