Resonance in L-C-R Circuit || Power in AC Circuit

Chapter-7|Alternating Current |NCERT 12th Physics:

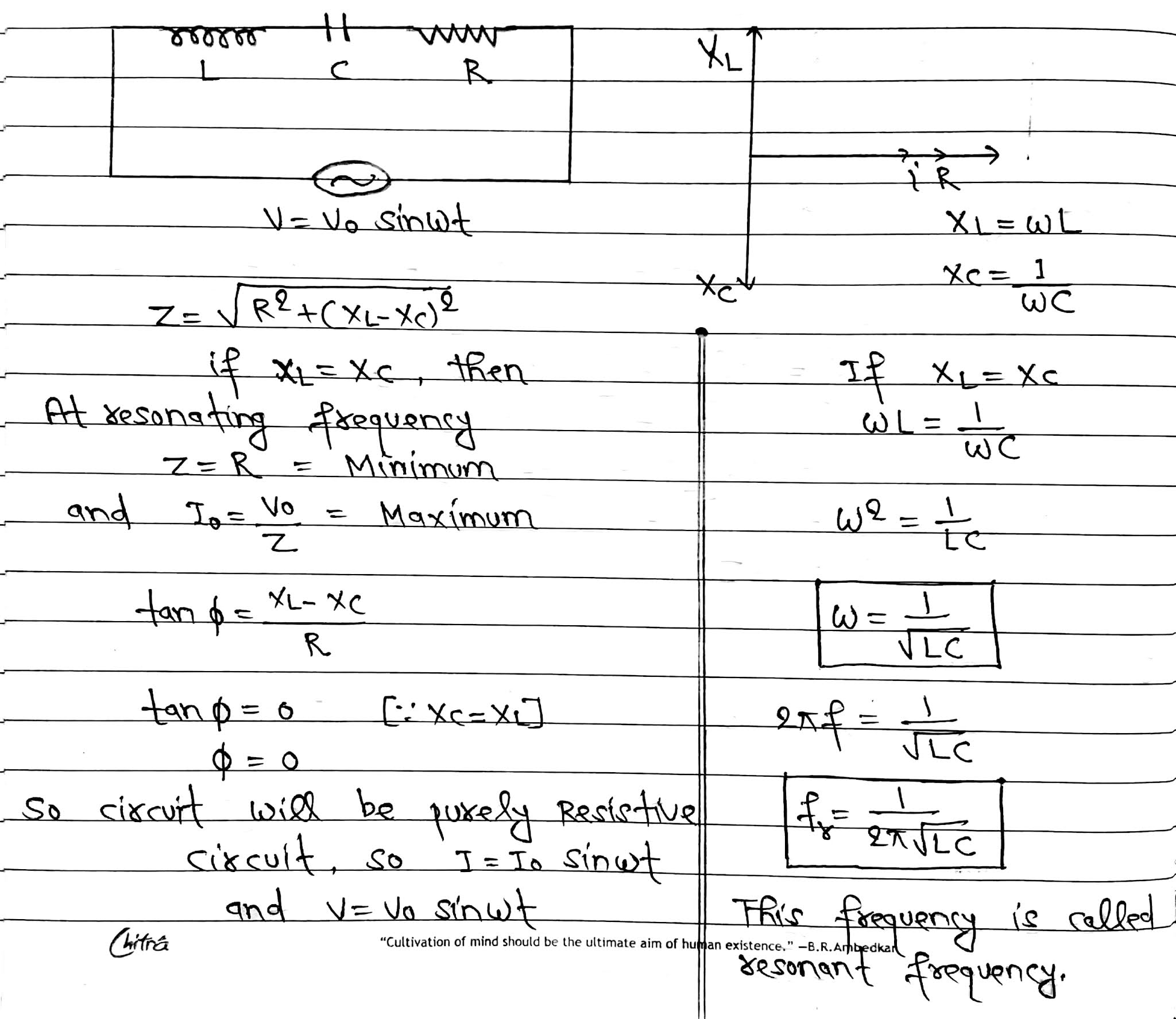

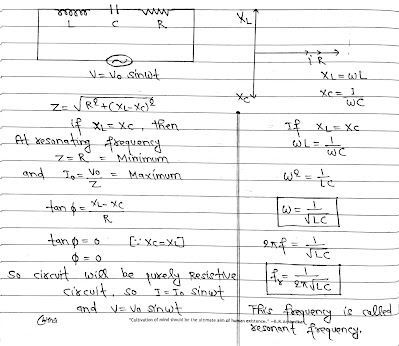

Resonance in L-C-R Circuit:

In LCR circuit, when phase(Ø) between current and voltage is zero, the circuit is said to be resonant circuit.

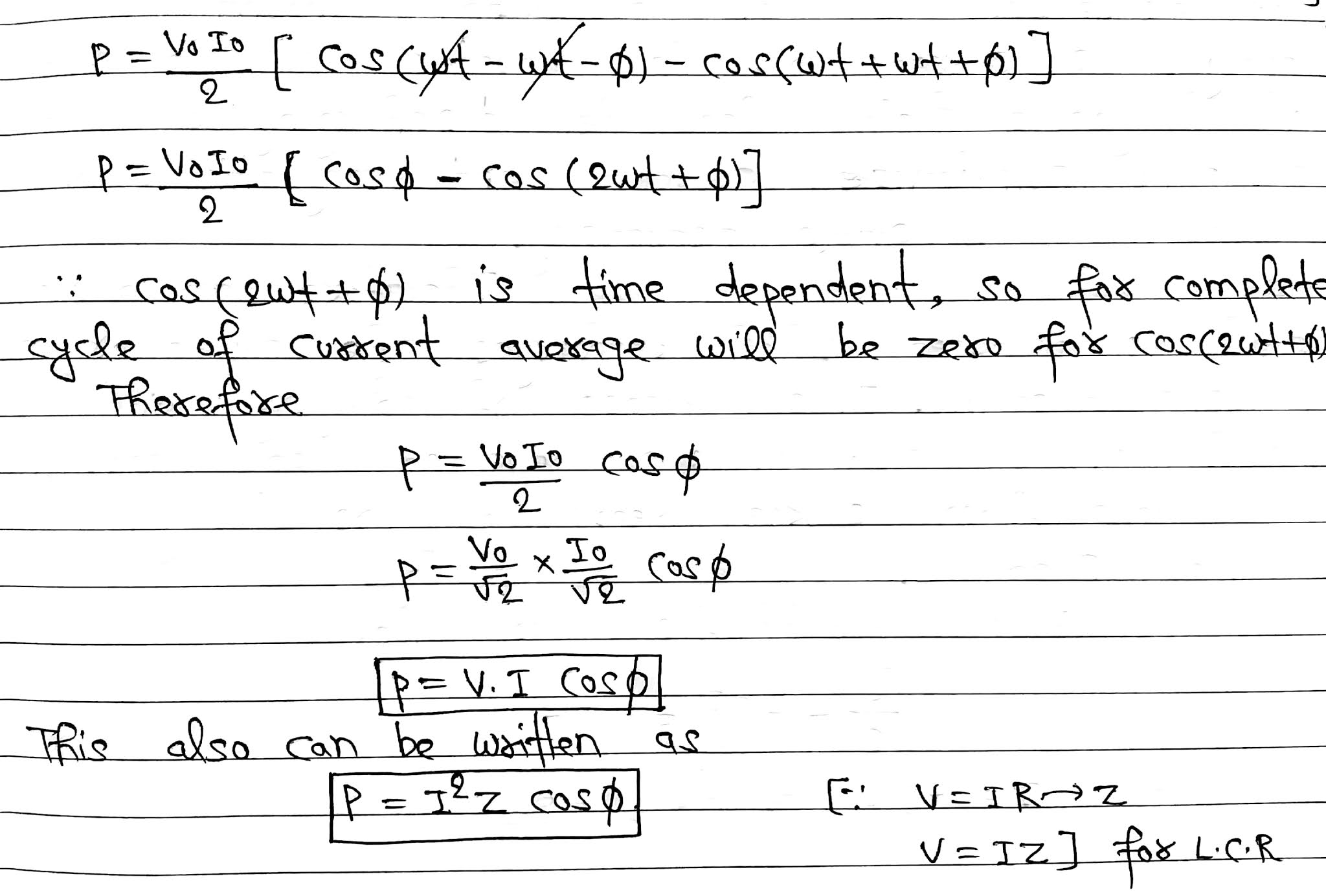

Power in AC Circuit:

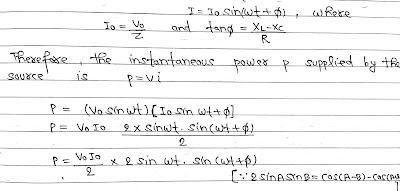

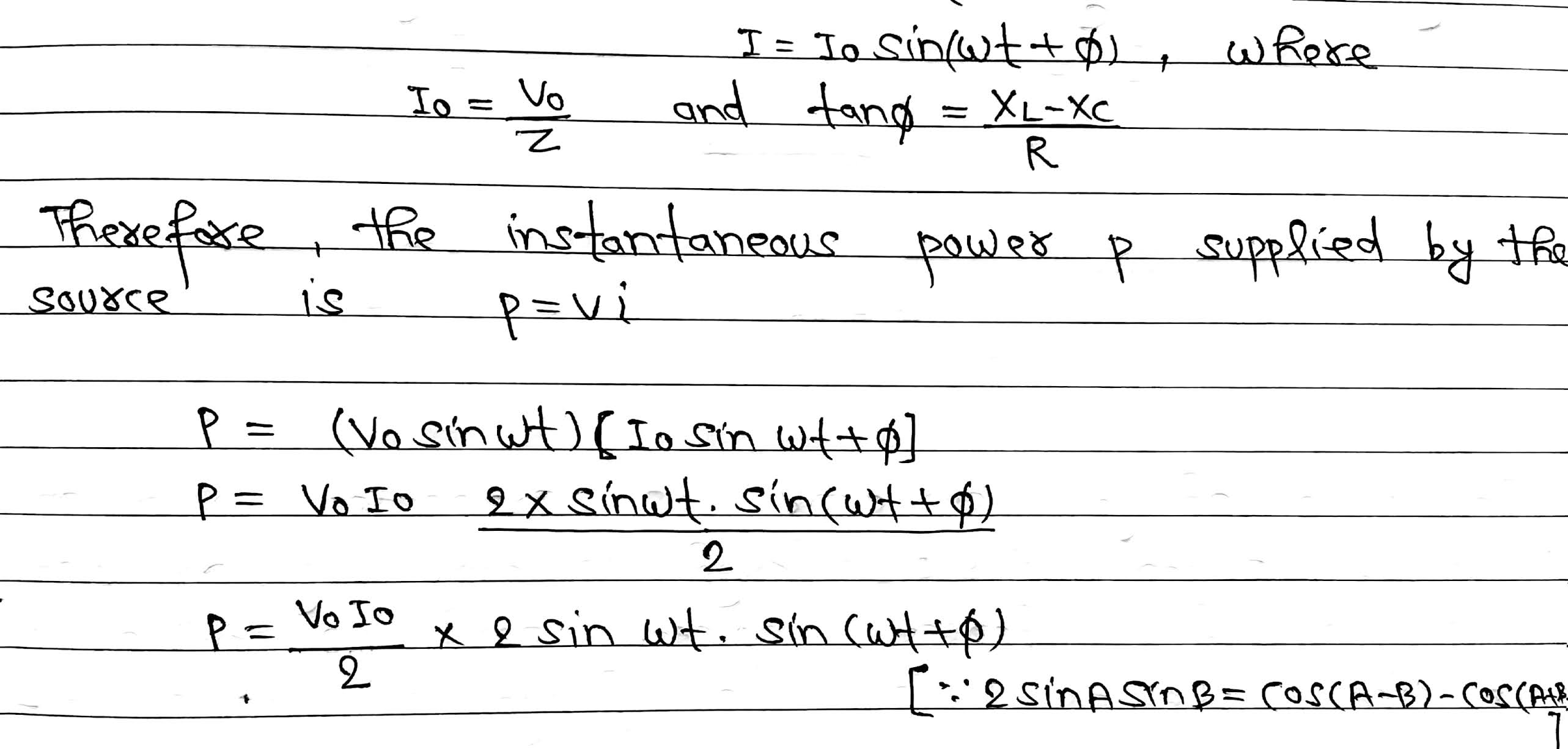

We know that,  V= V₀Sinωt  applied to a series LCR circuit drives a current in the circuit.
