Combinations of Cells

Chapter-3|Current Electricity| NCERT 12th Physics:

Combinations of Cells

Two Cells in Series:

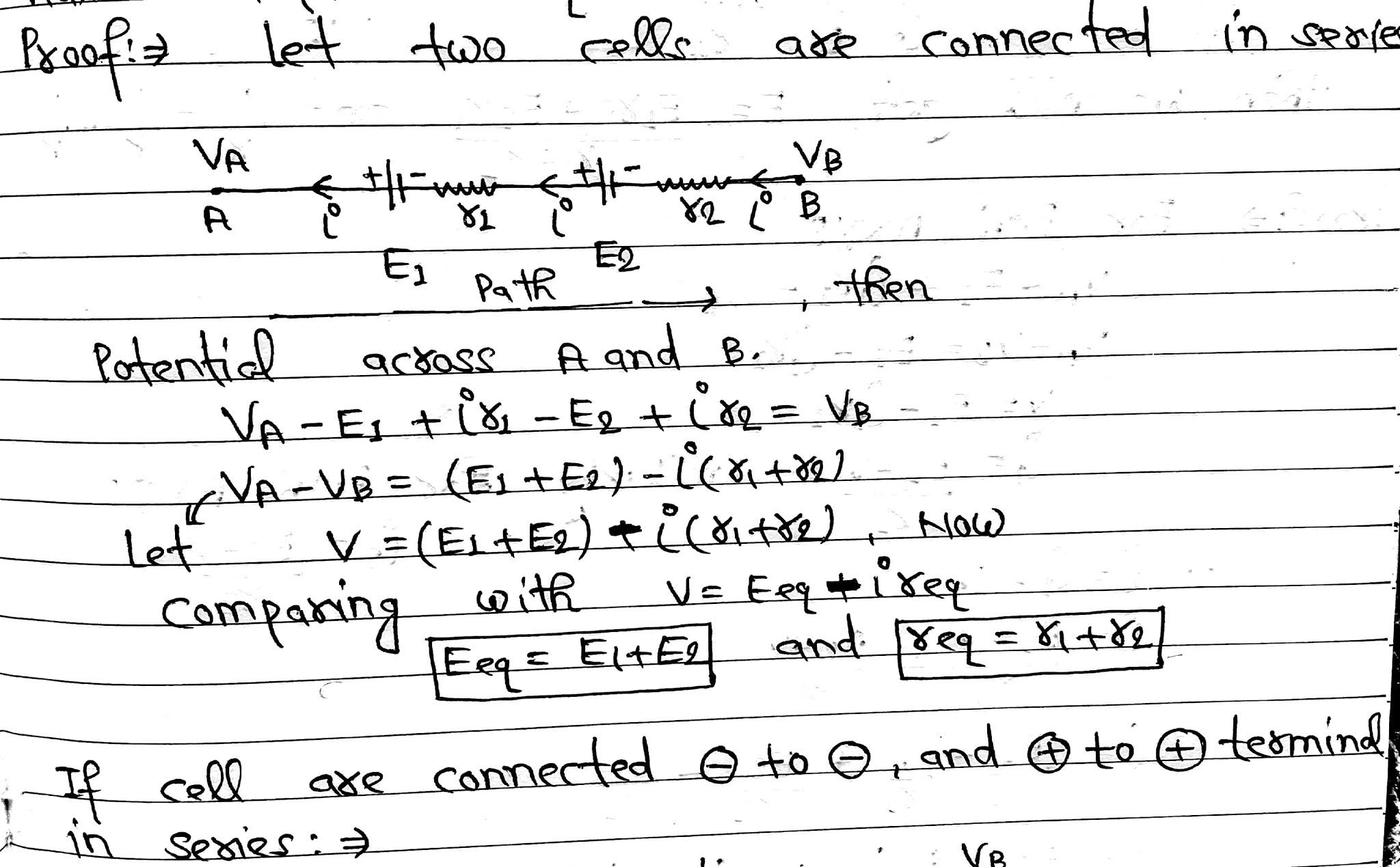

When two cells are connected in series, then total EMF of cells Eeq= E₁+E₂ and total internal resistance req= r₁+r₂



If Cells Are Connected – to – And + to + Terminal in Series:



Two Cells in Parallel:

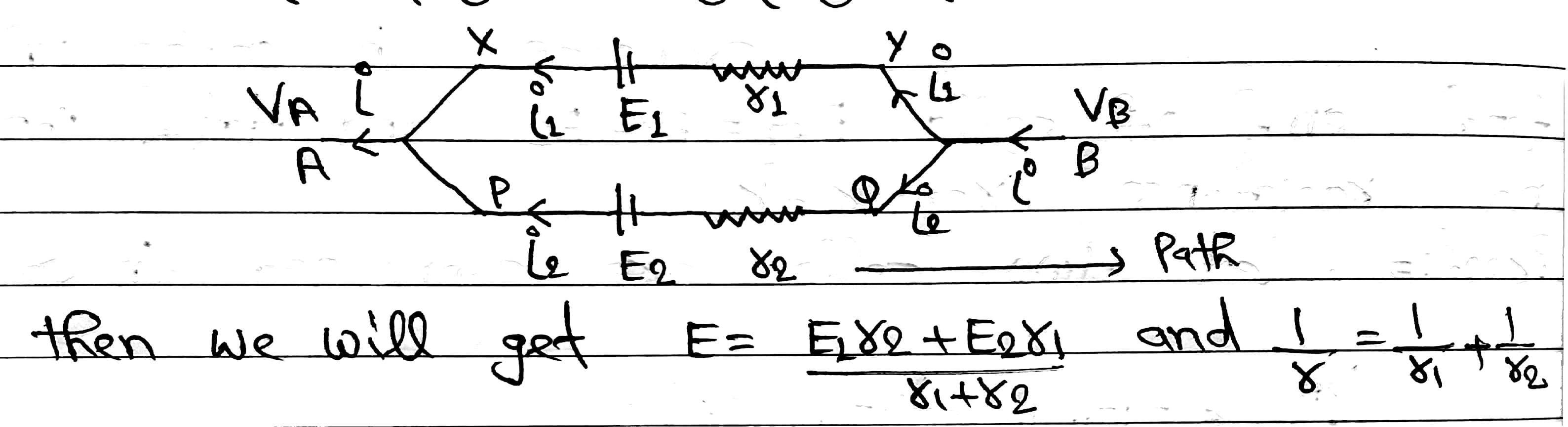

When two cells are connected in parallel, then we connect – to – and + to + terminals.
