Chapter-3|Current Electricity| NCERT 12th Physics:

Relation Between Terminal Potential Difference, EMF of Cell and Internal Resistance of a Cell:

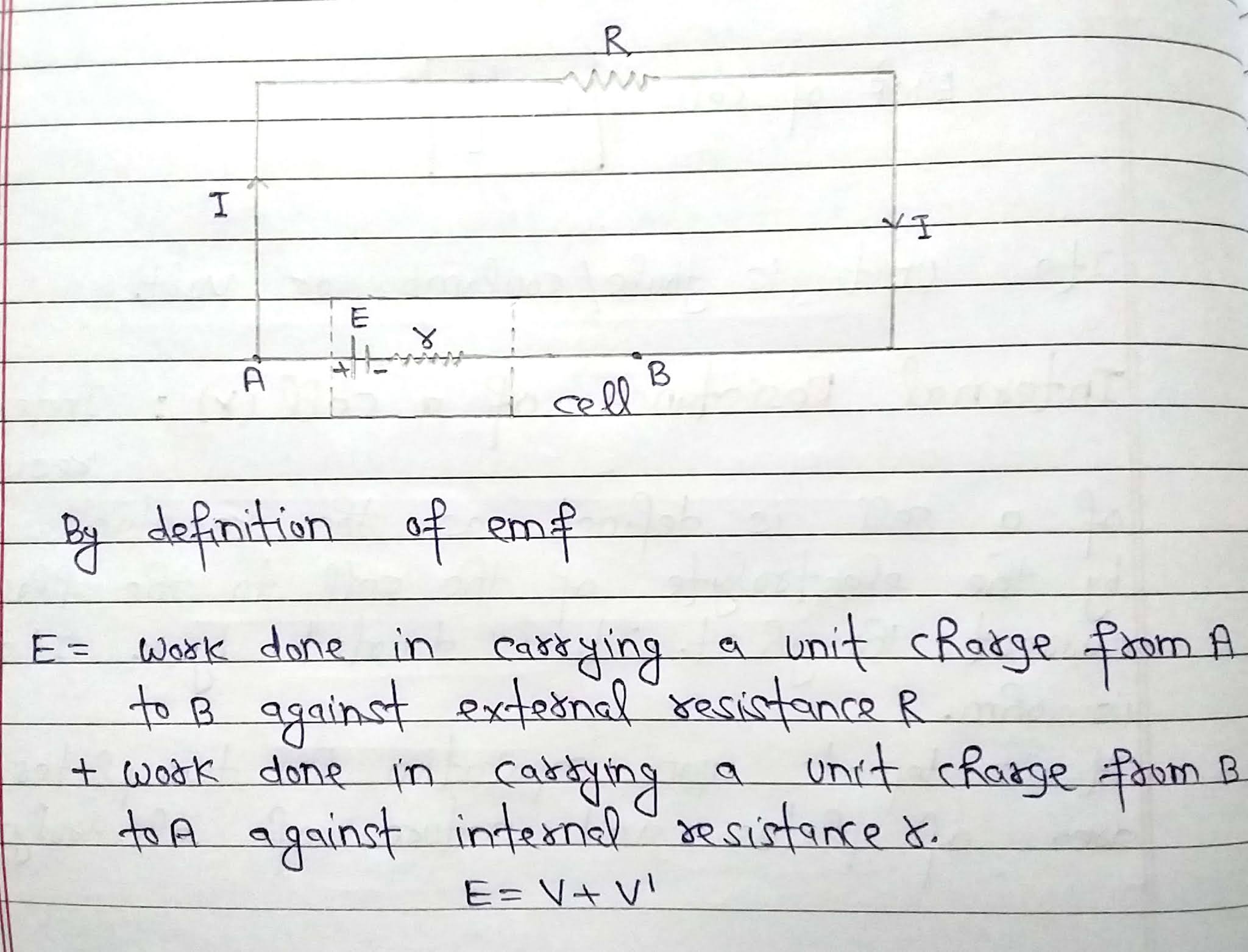

Let a cell of EMF E and internal resistance r connected to an external resistance R. let a constant current I flows through this circuit.

b2JWDe5E648L9yBVF9yWMgM6



DLQXVJWKLrWb8r8JBEKdbAbe
