Law of Refraction

Chapter-9|Ray Optics and Optical Instrument|NCERT 12th Physics:

Law of Refraction:

First Law:- The incident ray, the refracted ray and the normal to the refracting surface at the point of incidence, all lie in the same plane.

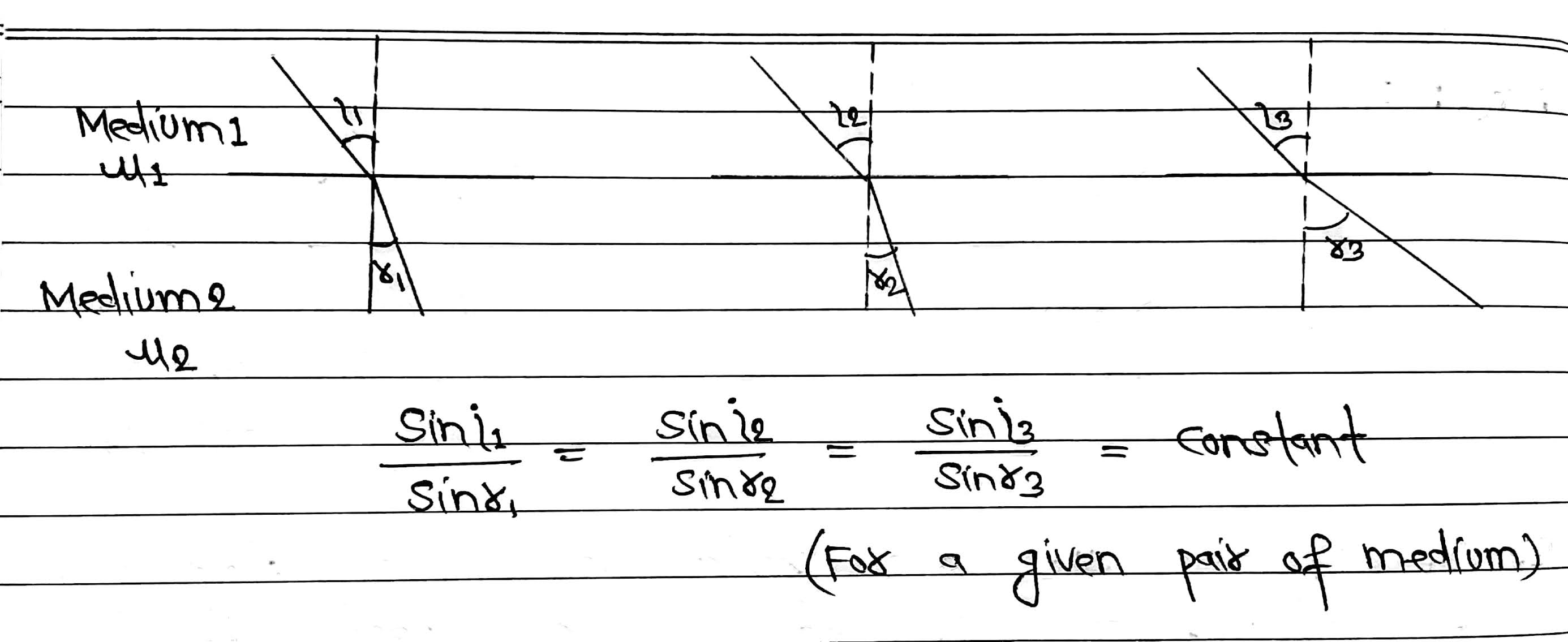

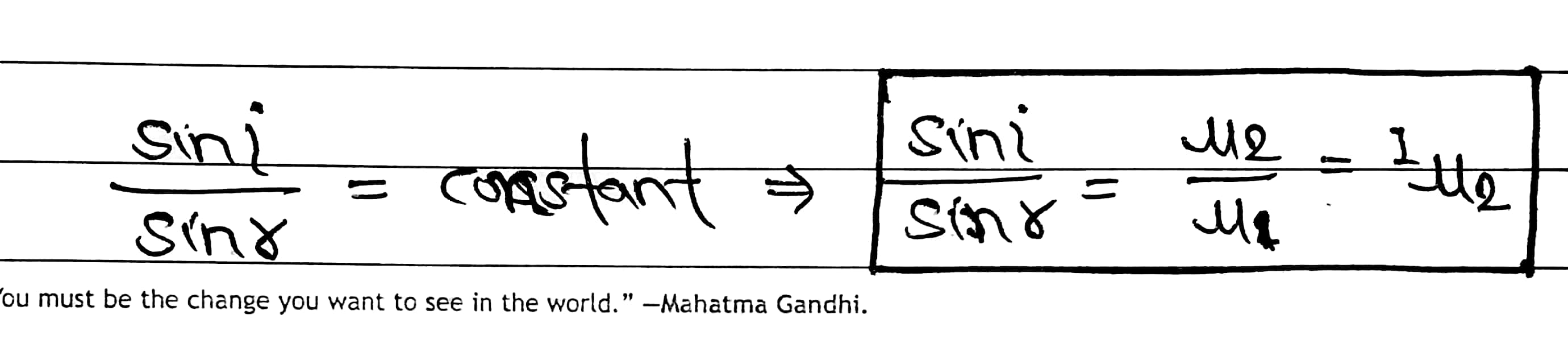

Second Law(Snell’s Law):- The ratio of the sine angle of incidence to the Sine angle of refraction is constant for the two given media. This constant is denoted by ¹μ₂ and is called relative refractive index of medium 2 with respect to medium 1.

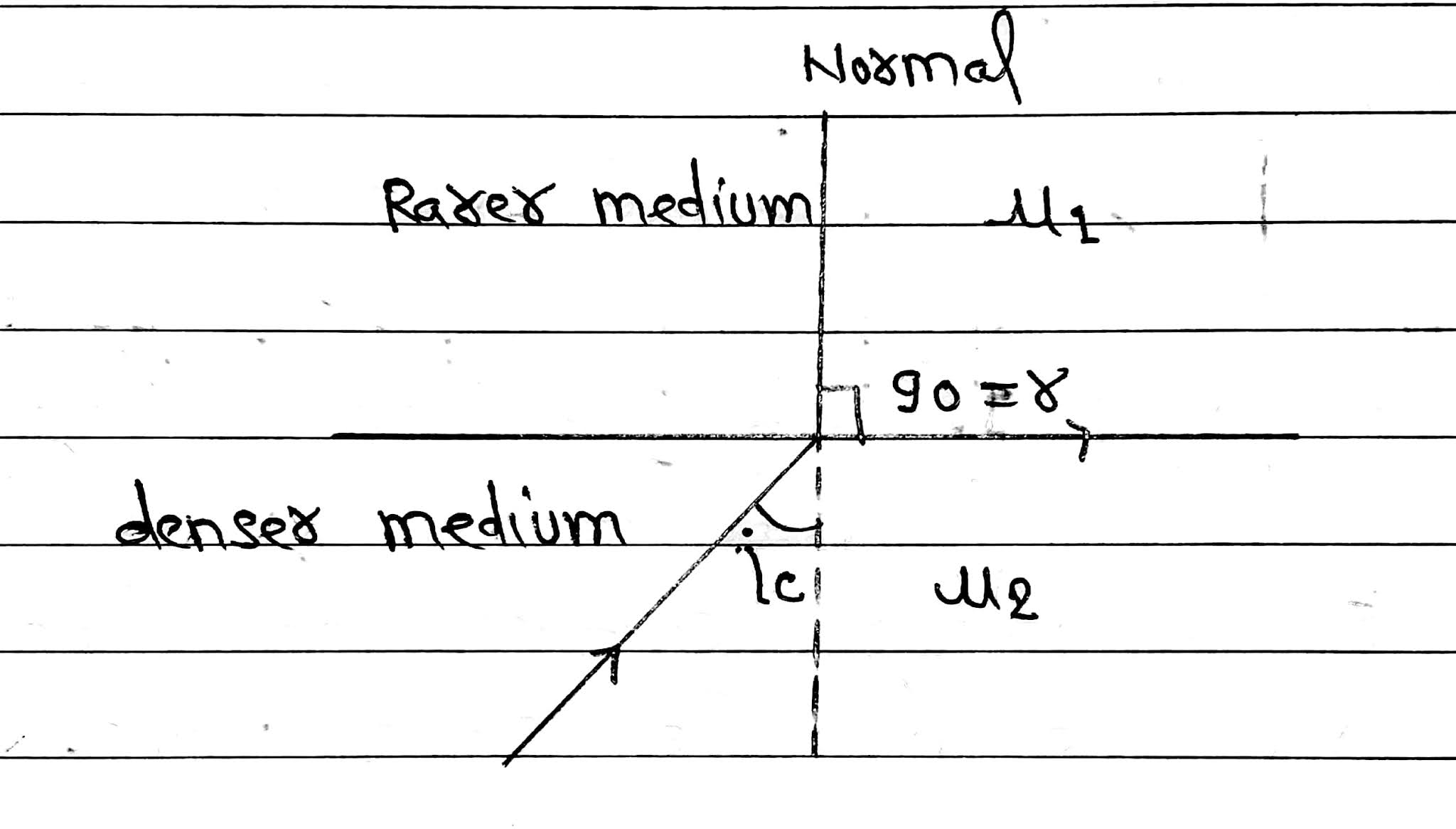

Critical Angle:


The angle of incident in denser medium for which angle of refraction in rarer medium is 90⁰ called Critical Angle.

The value of critical angle depends on the nature of two media in contact.

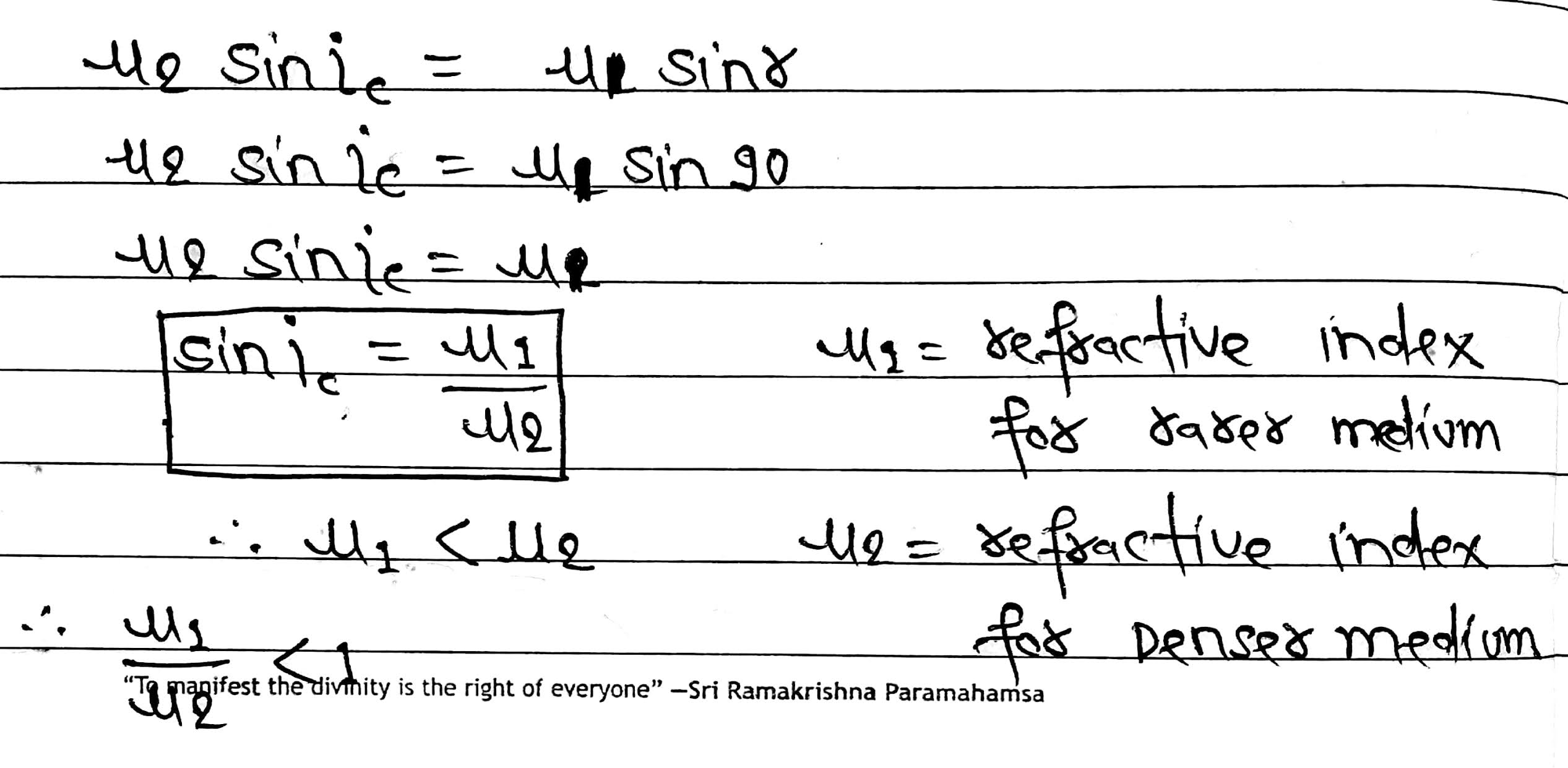

According to Snell’s Law
7KA0AF17SE3NUXCDQQD8bBrS


9RbQF3aL054DHFK3YAyK0WAJ
