Various Terms Related to Magnetism

Various Terms Related to Magnetism:

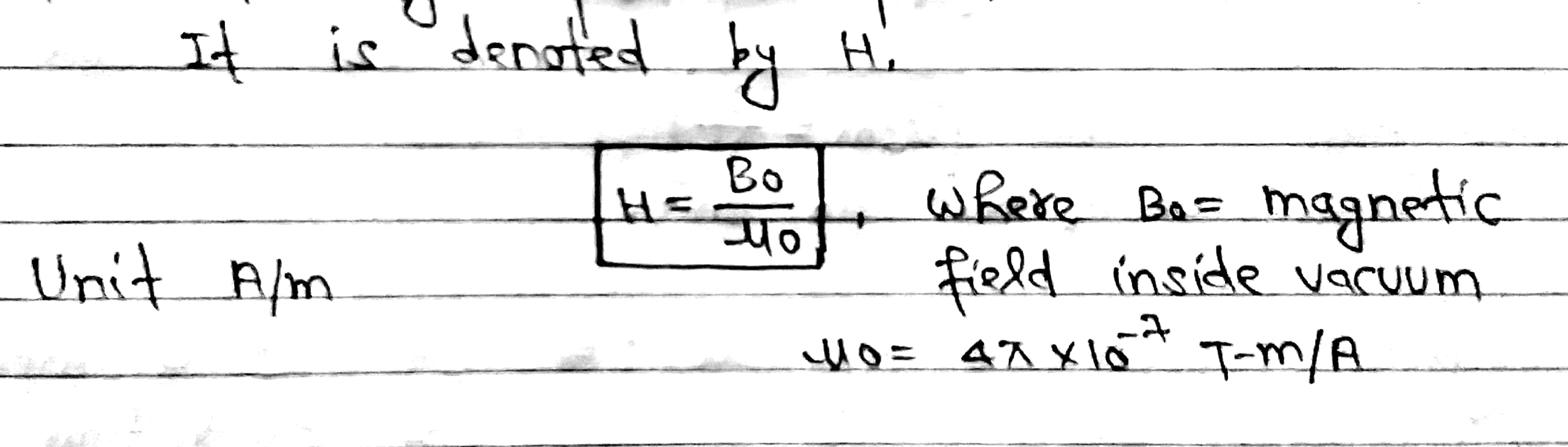

Magnetic Intensity(H):- The capacity of magnetic field to magnetize the substance is measured in terms of magnetic intensity of the field.

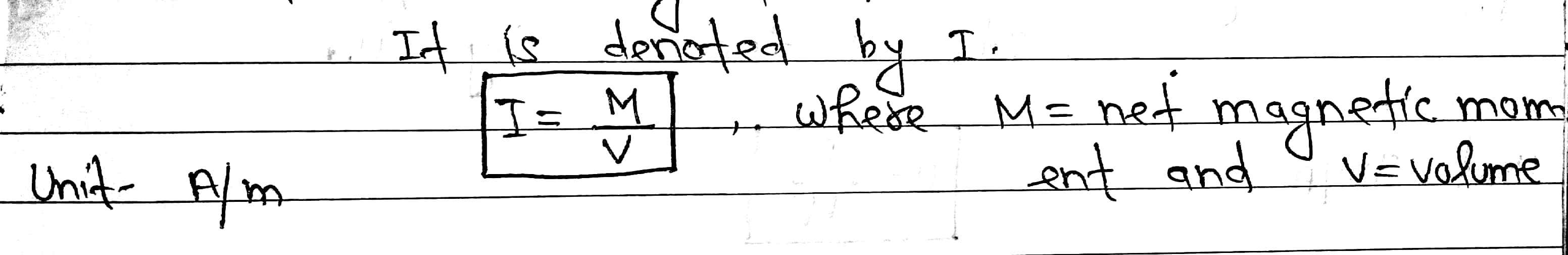

Intensity of Magnetisation(I):- The intensity of magnetization of a magnetized substance represent the degree to which the substances magnetized.

8747Pa7Pd3M0LB3drV9BDBVS



Magnetic Induction(B):- It is defined as the number of magnetic lines of induction crossing per unit area normally through the magnetic substance.

Magnetic induction B is the sum of the magnetic field B₀ and the magnetic field μ⁰I produced due to the magnetization of the substance.

Thus-

ggefCbN4XfbXCKND7Yf0RHLP

Magnetic Susceptibility:- It is the measure of how easily a substance is magnetized in the magnetising field. It is a ratio of the intensity of magnetisation to the magnetic intensity.

7RQJ48LRW62Vgb8MN3XgRfL2

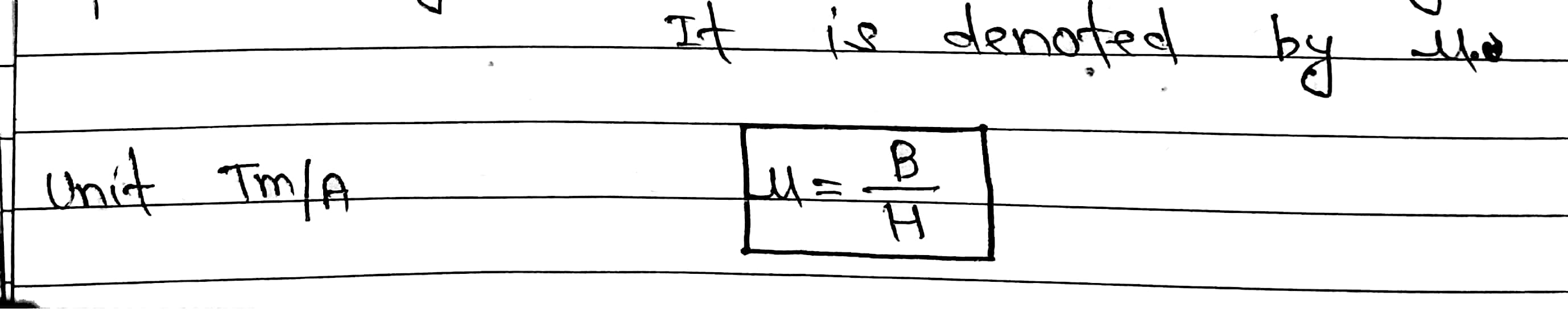

Magnetic Permeability:- It is a measure of conduction of magnetic field lines through a substance.
The magnetic permeability of a magnetic substance is defined as the ratio of the magnetic induction to the magnetic intensity.




Relative Magnetic Permeability:- It is the ratio of the magnetic permeability of the substance to the permeability of free space.

QF8bWS7TRC5b3H028JXtVEKb
